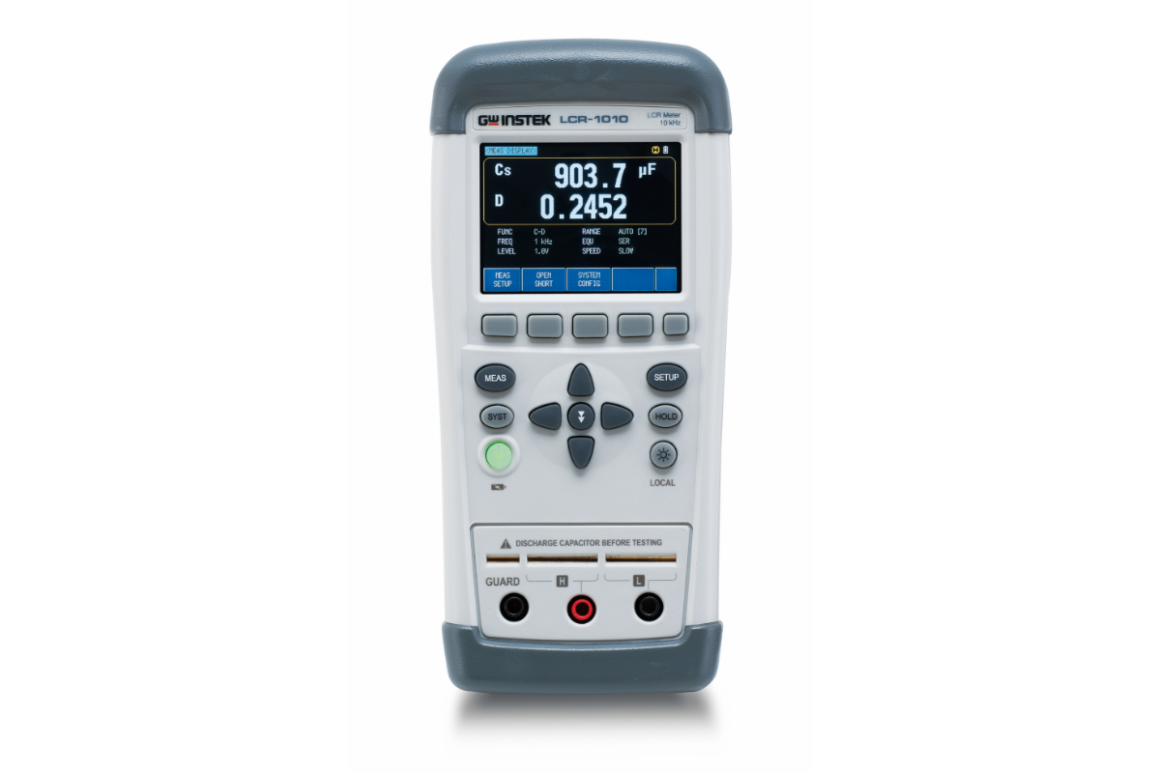

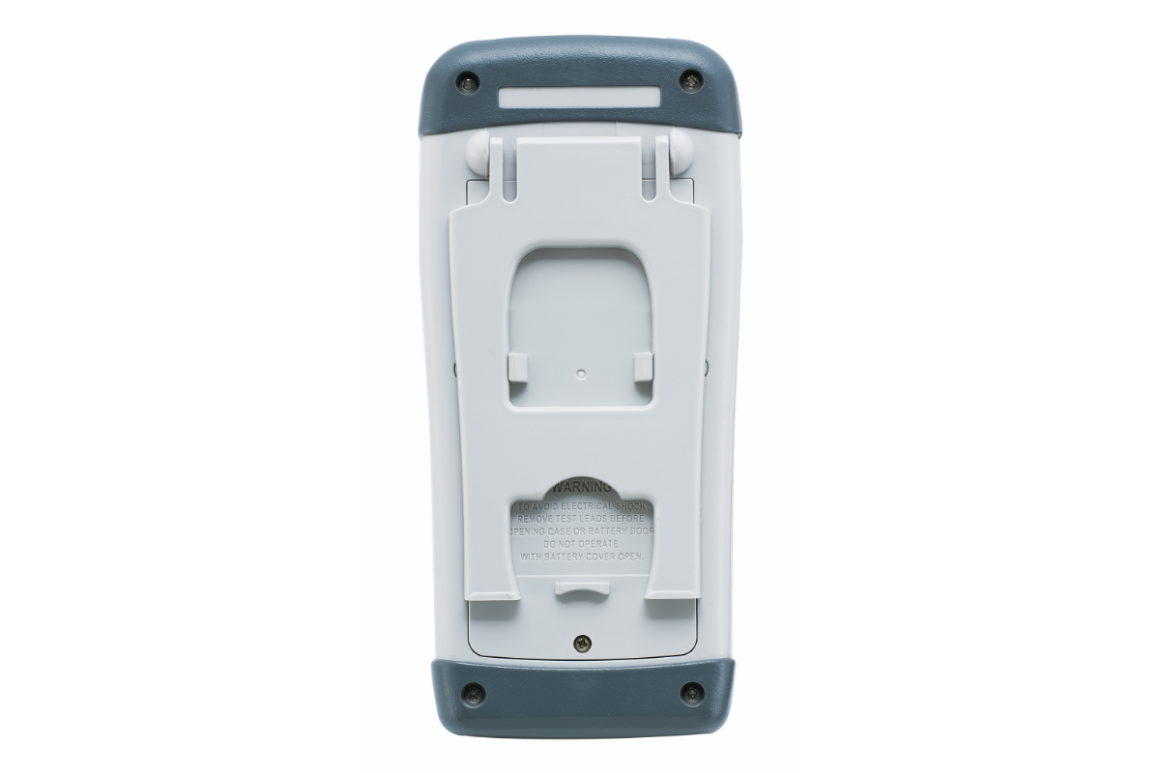

Handheld LCR Meter LCR-1000 series
Features
- 2.8” TFT Touch LCD
- 50,000 Counts Resolution on Primary and Secondary Display
- 0.2% Basic Accuracy
- Six or Eight Selectable Test Frequencies Depends on Model
- 15 Kinds Measurement Combinations Available
- Test Level Selectable : AC 0.3V/0.7V/1Vrms and DC +/- 1V
- Selectable measurement Speed : Fast 10 Times/s, Slow 2.5 Times/s
- Auto LCR Mode for Automatic Component Type Identification and measurement
- Data Hold
- USB (Virtual COM) Interface for Remote Communication
- Software for Datalogging is Avaible
Specification
Included Accessories
User manual x1, Safety Instruction Sheet x1
Optional Accessories
LCR-108 Test Fixture (Tweezers) for SMD/Chip Components
| MODEL |
LCR-1100 |
LCR-1010 |
| Test Frequency | 50/100/120Hz/1k/2k/10k/50k/100kHz | 50/100/120Hz/1k/2k/10kHz |
| Display | Primary/Secondary : 50,000 counts | Primary/Secondary : 50,000 counts |
| Output Impedance | 100Ω | 100Ω |
| Basic Accuracy | 0.2% | 0.2% |
| Test Speed | Slow: 2.5 times/s, Fast: 10 times/s | Slow: 2.5 times/s, Fast: 10 times/s |
| Test Signal Level | 0.3V/0.7V/1.0Vrms selectable | 0.3V/0.7V/1.0Vrms selectable |
| Test Parameters | C-D, C-Q, C-R, L-D, L-Q, L-R, L-Rdc, R-Q, R-X, R-Rdc, Rdc, Z-D, Z-Q, Z-θr, Z-θd |
C-D, C-Q, C-R, L-D, L-Q, L-R, L-Rdc, R-Q, R-X, R-Rdc, Rdc, Z-D, Z-Q, Z-θr, Z-θd |
| Equivalent Circuit | Series / Parallel selectable | Series / Parallel selectable |
Included Accessories
User manual x1, Safety Instruction Sheet x1
|
LCR-1100
|
LCR-1010
|
|
|
(LCR-100) Short circuit bar
|
Standard
|
Standard
|
|
(LCR-101) Kelvin Clip
|
Standard
|
Standard
|
|
(LCR-205) USB Cable
|
Standard
|
Standard
|
|
(LCR-305) Rechargeable Lithium Battery
|
Standard
|
Standard
|
|
(LCR-503) Carry Bag
|
Standard
|
Standard
|
|
(LCR-108) Test Fixture ~ Tweezers
|
Standard
|
Option
|
Optional Accessories
LCR-108 Test Fixture (Tweezers) for SMD/Chip Components
