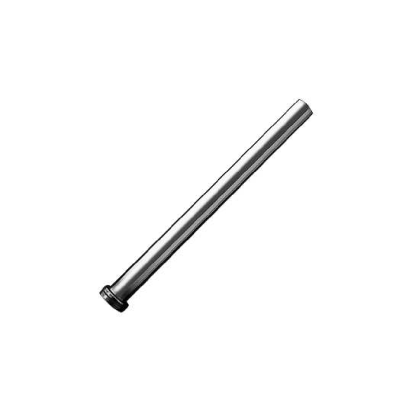

HASCO Ejector Sleeve Z4501-d1xd2xl1 (DIN ISO 8405)

HASCO Ejector Sleeve
Z4501/d1xd2xl1
WAS (~ 1.2343)
DIN ISO 8405
Ejector sleeve, hardened, longer guiding

The Z4501/... ejector sleeves supplied exclusively by HASCO are excellent demolding aids. Complex-shaped parts can be demoulded in a reliable and functional manner.
The through-hardened ejector sleeves in hot-working steel have a longer guide bore of 100 mm for all sizes. With the extended options for cutting to length and material selection, the ejector sleeve can be flexibly used for repairs.


Special Features

• 100 mm guide permits long ejector strokes
• Hot-working steel 1.2343 / 52 HRC
• High core strength ~1800N/mm²
• Individual processing for the same surface hardness
• Coating or subsequent nitriding possible
• Optimal for repairs of standard ejector sleeves
• Flexible cut-to-length options
• Exclusive HASCO product
• Custom interior bores on request

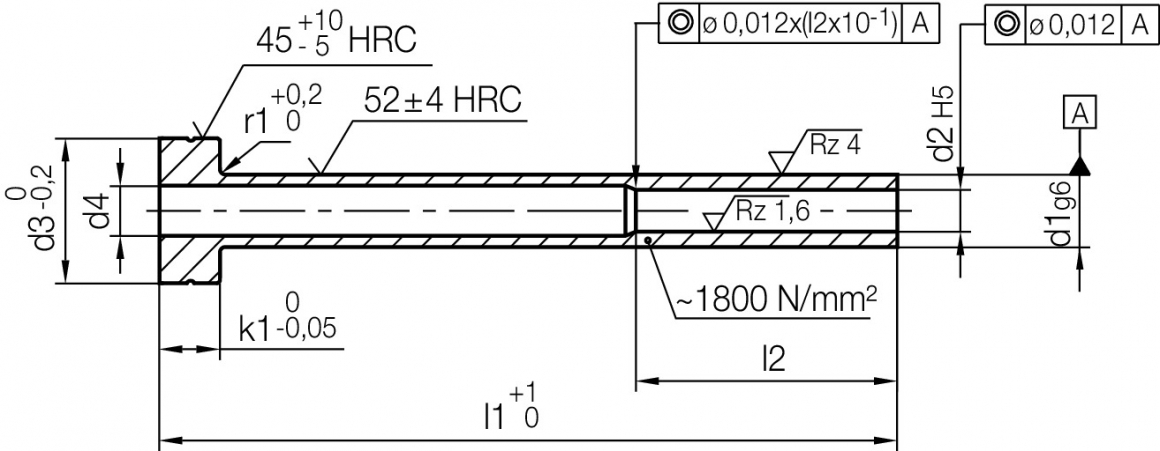

r1	k1	l2	d4	d3	d1	d2	l1	Product
0,5	5	100	4,5	12	6	4	100	Z4501/6x4x100
							175	Z4501/6x4x175
							250	Z4501/6x4x250
							325	Z4501/6x4x325
				14	8		100	Z4501/8x4x100
							175	Z4501/8x4x175
							250	Z4501/8x4x250
							325	Z4501/8x4x325
			5,5			5	100	Z4501/8x5x100
							175	Z4501/8x5x175
							250	Z4501/8x5x250
							325	Z4501/8x5x325
			6,5	16	10		100	Z4501/10x5x100
							175	Z4501/10x5x175
							250	Z4501/10x5x250
							325	Z4501/10x5x325
						6	100	Z4501/10x6x100
							175	Z4501/10x6x175
							250	Z4501/10x6x250
							325	Z4501/10x6x325
			7,5			7	100	Z4501/10x7x100
							175	Z4501/10x7x175
							250	Z4501/10x7x250
							325	Z4501/10x7x325
			8,5	18	11	8	100	Z4501/11x8x100
							175	Z4501/11x8x175
							250	Z4501/11x8x250
							325	Z4501/11x8x325
0,8	7			20	12		100	Z4501/12x8x100
							175	Z4501/12x8x175
							250	Z4501/12x8x250
							325	Z4501/12x8x325
			9,3			9	100	Z4501/12x9x100
			9,5				175	Z4501/12x9x175
							250	Z4501/12x9x250
							325	Z4501/12x9x325
			10,5	22	14	10	100	Z4501/14x10x100
							175	Z4501/14x10x175
							250	Z4501/14x10x250
							325	Z4501/14x10x325
			12,5		16	12	100	Z4501/16x12x100
							175	Z4501/16x12x175
							250	Z4501/16x12x250
							325	Z4501/16x12x325
