    HomeMetal & PlasticsMold PartsEjector Sleeve

    Mold Parts

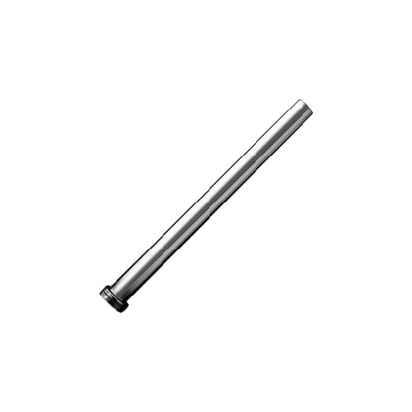

    HASCO Ejector Sleeve Z451-d1xd2xl1 (DIN ISO 8405) (DIN 16756)

    add to cart Inquiry Now
    HASCO Ejector Sleeve
    Z451/d1xd2xl1
    WS (~ 1.2516)
    DIN ISO 8405 (DIN 16756)
    Ejector sleeve, hardened

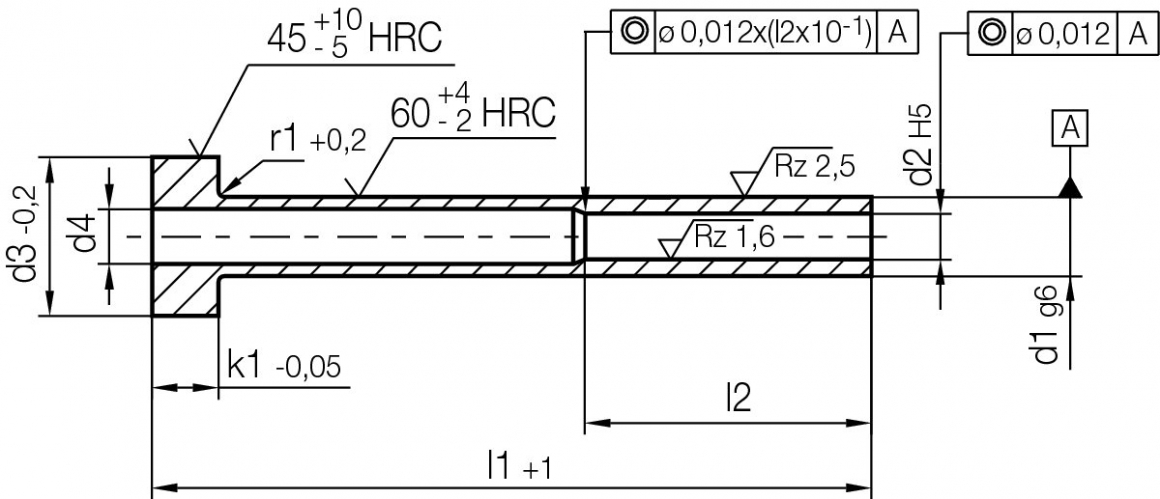

    r1 k1 l2 d4 d3 d1 d2 l1 Product
    0,2 2 25 1,3 4 2 1 50 Z451/2x1x50
    56 Z451/2x1x56
    63 Z451/2x1x63
    71 Z451/2x1x71
    80 Z451/2x1x80
    0,3 20 1,1 5 2,2 0,8 71 Z451/2,2x0,8x71
    80 Z451/2,2x0,8x80
    90 Z451/2,2x0,8x90
    100 Z451/2,2x0,8x100
    112 Z451/2,2x0,8x112
    125 Z451/2,2x0,8x125
    25 1,3 2,5 1 71 Z451/2,5x1x71
    80 Z451/2,5x1x80
    90 Z451/2,5x1x90
    100 Z451/2,5x1x100
    112 Z451/2,5x1x112
    125 Z451/2,5x1x125
    1,5 1,2 71 Z451/2,5x1,2x71
    80 Z451/2,5x1,2x80
    90 Z451/2,5x1,2x90
    100 Z451/2,5x1,2x100
    112 Z451/2,5x1,2x112
    125 Z451/2,5x1,2x125
    1,6 1,3 71 Z451/2,5x1,3x71
    80 Z451/2,5x1,3x80
    90 Z451/2,5x1,3x90
    100 Z451/2,5x1,3x100
    112 Z451/2,5x1,3x112
    125 Z451/2,5x1,3x125
    3 35 1,8 6 3 1,5 50 Z451/3x1,5x50
    60 Z451/3x1,5x60
    71 Z451/3x1,5x71
    80 Z451/3x1,5x80
    90 Z451/3x1,5x90
    100 Z451/3x1,5x100
    112 Z451/3x1,5x112
    125 Z451/3x1,5x125
    140 Z451/3x1,5x140
    150 Z451/3x1,5x150
    2 1,6 50 Z451/3x1,6x50
    60 Z451/3x1,6x60
    75 Z451/3x1,6x75
    80 Z451/3x1,6x80
    90 Z451/3x1,6x90
    100 Z451/3x1,6x100
    112 Z451/3x1,6x112
    125 Z451/3x1,6x125
    140 Z451/3x1,6x140
    150 Z451/3x1,6x150
    175 Z451/3x1,6x175
    2,1 1,8 71 Z451/3x1,8x71
    80 Z451/3x1,8x80
    90 Z451/3x1,8x90
    100 Z451/3x1,8x100
    112 Z451/3x1,8x112
    125 Z451/3x1,8x125
    140 Z451/3x1,8x140
    2,3 2 50 Z451/3x2x50
    63 Z451/3x2x63
    71 Z451/3x2x71
    80 Z451/3x2x80
    7 3,5 71 Z451/3,5x2x71
    80 Z451/3,5x2x80
    90 Z451/3,5x2x90
    100 Z451/3,5x2x100
    112 Z451/3,5x2x112
    125 Z451/3,5x2x125
    140 Z451/3,5x2x140
    160 Z451/3,5x2x160
    180 Z451/3,5x2x180
    200 Z451/3,5x2x200
    2,5 2,2 50 Z451/3,5x2,2x50
    60 Z451/3,5x2,2x60
    75 Z451/3,5x2,2x75
    100 Z451/3,5x2,2x100
    125 Z451/3,5x2,2x125
    150 Z451/3,5x2,2x150
    175 Z451/3,5x2,2x175
    8 4 2 50 Z451/4x2x50
    60 Z451/4x2x60
    75 Z451/4x2x75
    100 Z451/4x2x100
    125 Z451/4x2x125
    150 Z451/4x2x150
    175 Z451/4x2x175
    200 Z451/4x2x200
    225 Z451/4x2x225
    250 Z451/4x2x250
    2,8 2,5 50 Z451/4x2,5x50
    63 Z451/4x2,5x63
    80 Z451/4x2,5x80
    90 Z451/4x2,5x90
    100 Z451/4x2,5x100
    112 Z451/4x2,5x112
    125 Z451/4x2,5x125
    150 Z451/4x2,5x150
    175 Z451/4x2,5x175
    4,5 100 Z451/4,5x2,5x100
    112 Z451/4,5x2,5x112
    125 Z451/4,5x2,5x125
    140 Z451/4,5x2,5x140
    160 Z451/4,5x2,5x160
    180 Z451/4,5x2,5x180
    200 Z451/4,5x2,5x200
    225 Z451/4,5x2,5x225
    50 3 3 50 Z451/4,5x3x50
    45 3,3 56 Z451/4,5x3x56
    63 Z451/4,5x3x63
    71 Z451/4,5x3x71
    80 Z451/4,5x3x80
    90 Z451/4,5x3x90
    100 Z451/4,5x3x100
    112 Z451/4,5x3x112
    35 3 10 5 2,5 50 Z451/5x2,5x50
    60 Z451/5x2,5x60
    75 Z451/5x2,5x75
    100 Z451/5x2,5x100
    125 Z451/5x2,5x125
    150 Z451/5x2,5x150
    175 Z451/5x2,5x175
    200 Z451/5x2,5x200
    225 Z451/5x2,5x225
    250 Z451/5x2,5x250
    275 Z451/5x2,5x275
    300 Z451/5x2,5x300
    50 3 50 Z451/5x3x50
    45 3,5 60 Z451/5x3x60
    75 Z451/5x3x75
    100 Z451/5x3x100
    112 Z451/5x3x112
    125 Z451/5x3x125
    140 Z451/5x3x140
    150 Z451/5x3x150
    160 Z451/5x3x160
    175 Z451/5x3x175
    180 Z451/5x3x180
    200 Z451/5x3x200
    225 Z451/5x3x225
    250 Z451/5x3x250
    275 Z451/5x3x275
    300 Z451/5x3x300
    3,2 60 Z451/5x3,2x60
    75 Z451/5x3,2x75
    100 Z451/5x3,2x100
    125 Z451/5x3,2x125
    150 Z451/5x3,2x150
    175 Z451/5x3,2x175
    200 Z451/5x3,2x200
    225 Z451/5x3,2x225
    250 Z451/5x3,2x250
    3,8 3,5 56 Z451/5x3,5x56
    63 Z451/5x3,5x63
    71 Z451/5x3,5x71
    80 Z451/5x3,5x80
    90 Z451/5x3,5x90
    100 Z451/5x3,5x100
    112 Z451/5x3,5x112
    125 Z451/5x3,5x125
    150 Z451/5x3,5x150
    175 Z451/5x3,5x175
    5,5 112 Z451/5,5x3,5x112
    125 Z451/5,5x3,5x125
    140 Z451/5,5x3,5x140
    160 Z451/5,5x3,5x160
    180 Z451/5,5x3,5x180
    200 Z451/5,5x3,5x200
    225 Z451/5,5x3,5x225
    250 Z451/5,5x3,5x250
    280 Z451/5,5x3,5x280
    4,3 4 56 Z451/5,5x4x56
    63 Z451/5,5x4x63
    71 Z451/5,5x4x71
    80 Z451/5,5x4x80
    90 Z451/5,5x4x90
    100 Z451/5,5x4x100
    112 Z451/5,5x4x112
    125 Z451/5,5x4x125
    140 Z451/5,5x4x140
    160 Z451/5,5x4x160
    0,5 5 50 3,5 12 6 3,5 50 Z451/6x3,5x50
    45 4 60 Z451/6x3,5x60
    75 Z451/6x3,5x75
    100 Z451/6x3,5x100
    125 Z451/6x3,5x125
    150 Z451/6x3,5x150
    175 Z451/6x3,5x175
    200 Z451/6x3,5x200
    225 Z451/6x3,5x225
    250 Z451/6x3,5x250
    275 Z451/6x3,5x275
    300 Z451/6x3,5x300
    50 3,7 3,7 50 Z451/6x3,7x50
    45 4 60 Z451/6x3,7x60
    75 Z451/6x3,7x75
    100 Z451/6x3,7x100
    125 Z451/6x3,7x125
    150 Z451/6x3,7x150
    175 Z451/6x3,7x175
    50 4 50 Z451/6x4x50
    45 4,5 60 Z451/6x4x60
    75 Z451/6x4x75
    100 Z451/6x4x100
    112 Z451/6x4x112
    125 Z451/6x4x125
    140 Z451/6x4x140
    150 Z451/6x4x150
    160 Z451/6x4x160
    175 Z451/6x4x175
    200 Z451/6x4x200
    225 Z451/6x4x225
    250 Z451/6x4x250
    275 Z451/6x4x275
    280 Z451/6x4x280
    300 Z451/6x4x300
    315 Z451/6x4x315
    325 Z451/6x4x325
    100 400 Z451/6x4x400
    45 5 7 4,5 112 Z451/7x4,5x112
    125 Z451/7x4,5x125
    140 Z451/7x4,5x140
    160 Z451/7x4,5x160
    180 Z451/7x4,5x180
    200 Z451/7x4,5x200
    225 Z451/7x4,5x225
    250 Z451/7x4,5x250
    280 Z451/7x4,5x280
    315 Z451/7x4,5x315
    5,3 5 56 Z451/7x5x56
    63 Z451/7x5x63
    71 Z451/7x5x71
    80 Z451/7x5x80
    90 Z451/7x5x90
    100 Z451/7x5x100
    112 Z451/7x5x112
    125 Z451/7x5x125
    50 4,2 14 8 4,2 50 Z451/8x4,2x50
    45 4,5 60 Z451/8x4,2x60
    75 Z451/8x4,2x75
    100 Z451/8x4,2x100
    125 Z451/8x4,2x125
    150 Z451/8x4,2x150
    175 Z451/8x4,2x175
    200 Z451/8x4,2x200
    225 Z451/8x4,2x225
    250 Z451/8x4,2x250
    275 Z451/8x4,2x275
    300 Z451/8x4,2x300
    50 5 5 50 Z451/8x5x50
    45 5,5 60 Z451/8x5x60
    75 Z451/8x5x75
    100 Z451/8x5x100
    125 Z451/8x5x125
    150 Z451/8x5x150
    175 Z451/8x5x175
    200 Z451/8x5x200
    225 Z451/8x5x225
    250 Z451/8x5x250
    275 Z451/8x5x275
    300 Z451/8x5x300
    325 Z451/8x5x325
    100 400 Z451/8x5x400
    50 5,2 5,2 50 Z451/8x5,2x50
    45 5,5 60 Z451/8x5,2x60
    75 Z451/8x5,2x75
    100 Z451/8x5,2x100
    125 Z451/8x5,2x125
    150 Z451/8x5,2x150
    175 Z451/8x5,2x175
    200 Z451/8x5,2x200
    225 Z451/8x5,2x225
    250 Z451/8x5,2x250
    275 Z451/8x5,2x275
    300 Z451/8x5,2x300
    325 Z451/8x5,2x325
    100 400 Z451/8x5,2x400
    45 5,8 5,5 60 Z451/8x5,5x60
    75 Z451/8x5,5x75
    100 Z451/8x5,5x100
    112 Z451/8x5,5x112
    125 Z451/8x5,5x125
    140 Z451/8x5,5x140
    160 Z451/8x5,5x160
    180 Z451/8x5,5x180
    200 Z451/8x5,5x200
    225 Z451/8x5,5x225
    250 Z451/8x5,5x250
    280 Z451/8x5,5x280
    315 Z451/8x5,5x315
    6,5 9 6 60 Z451/9x6x60
    75 Z451/9x6x75
    100 Z451/9x6x100
    125 Z451/9x6x125
    140 Z451/9x6x140
    160 Z451/9x6x160
    180 Z451/9x6x180
    200 Z451/9x6x200
    225 Z451/9x6x225
    250 Z451/9x6x250
    280 Z451/9x6x280
    315 Z451/9x6x315
    50 6 16 10 50 Z451/10x6x50
    45 6,5 60 Z451/10x6x60
    75 Z451/10x6x75
    100 Z451/10x6x100
    125 Z451/10x6x125
    150 Z451/10x6x150
    175 Z451/10x6x175
    200 Z451/10x6x200
    225 Z451/10x6x225
    250 Z451/10x6x250
    275 Z451/10x6x275
    300 Z451/10x6x300
    325 Z451/10x6x325
    100 400 Z451/10x6x400
    45 7 6,5 60 Z451/10x6,5x60
    75 Z451/10x6,5x75
    100 Z451/10x6,5x100
    125 Z451/10x6,5x125
    140 Z451/10x6,5x140
    160 Z451/10x6,5x160
    180 Z451/10x6,5x180
    200 Z451/10x6,5x200
    225 Z451/10x6,5x225
    250 Z451/10x6,5x250
    280 Z451/10x6,5x280
    315 Z451/10x6,5x315
    7,5 7 75 Z451/10x7x75
    100 Z451/10x7x100
    125 Z451/10x7x125
    140 Z451/10x7x140
    160 Z451/10x7x160
    180 Z451/10x7x180
    200 Z451/10x7x200
    225 Z451/10x7x225
    8,5 18 11 8 63 Z451/11x8x63
    71 Z451/11x8x71
    80 Z451/11x8x80
    90 Z451/11x8x90
    100 Z451/11x8x100
    112 Z451/11x8x112
    125 Z451/11x8x125
    140 Z451/11x8x140
    150 Z451/11x8x150
    0,8 7 20 12 60 Z451/12x8x60
    75 Z451/12x8x75
    100 Z451/12x8x100
    125 Z451/12x8x125
    150 Z451/12x8x150
    175 Z451/12x8x175
    200 Z451/12x8x200
    225 Z451/12x8x225
    250 Z451/12x8x250
    275 Z451/12x8x275
    300 Z451/12x8x300
    8,2 60 Z451/12x8,2x60
    75 Z451/12x8,2x75
    100 Z451/12x8,2x100
    125 Z451/12x8,2x125
    150 Z451/12x8,2x150
    175 Z451/12x8,2x175
    200 Z451/12x8,2x200
    225 Z451/12x8,2x225
    250 Z451/12x8,2x250
    275 Z451/12x8,2x275
    300 Z451/12x8,2x300
    9,3 9 63 Z451/12x9x63
    71 Z451/12x9x71
    80 Z451/12x9x80
    90 Z451/12x9x90
    100 Z451/12x9x100
    125 Z451/12x9x125
    9,5 150 Z451/12x9x150
    200 Z451/12x9x200
    10,5 22 14 10 60 Z451/14x10x60
    75 Z451/14x10x75
    100 Z451/14x10x100
    125 Z451/14x10x125
    140 Z451/14x10x140
    150 Z451/14x10x150
    160 Z451/14x10x160
    175 Z451/14x10x175
    180 Z451/14x10x180
    200 Z451/14x10x200
    225 Z451/14x10x225
    250 Z451/14x10x250
    275 Z451/14x10x275
    280 Z451/14x10x280
    300 Z451/14x10x300
    315 Z451/14x10x315
    325 Z451/14x10x325
    11 10,5 75 Z451/14x10,5x75
    100 Z451/14x10,5x100
    125 Z451/14x10,5x125
    150 Z451/14x10,5x150
    175 Z451/14x10,5x175
    200 Z451/14x10,5x200
    225 Z451/14x10,5x225
    250 Z451/14x10,5x250
    275 Z451/14x10,5x275
    300 Z451/14x10,5x300
    11,5 11 100 Z451/14x11x100
    125 Z451/14x11x125
    150 Z451/14x11x150
    175 Z451/14x11x175
    200 Z451/14x11x200
    225 Z451/14x11x225
    250 Z451/14x11x250
    275 Z451/14x11x275
    300 Z451/14x11x300
    325 Z451/14x11x325
    12,5 16 12 75 Z451/16x12x75
    100 Z451/16x12x100
    125 Z451/16x12x125
    140 Z451/16x12x140
    150 Z451/16x12x150
    160 Z451/16x12x160
    175 Z451/16x12x175
    180 Z451/16x12x180
    200 Z451/16x12x200
    225 Z451/16x12x225
    250 Z451/16x12x250
    275 Z451/16x12x275
    280 Z451/16x12x280
    300 Z451/16x12x300
    315 Z451/16x12x315
    325 Z451/16x12x325
    13 12,5 75 Z451/16x12,5x75
    100 Z451/16x12,5x100
    125 Z451/16x12,5x125
    150 Z451/16x12,5x150
    175 Z451/16x12,5x175
    200 Z451/16x12,5x200
    225 Z451/16x12,5x225
    250 Z451/16x12,5x250
    275 Z451/16x12,5x275
    300 Z451/16x12,5x300
    1 100 16 26 20 16 100 Z451/20x16x100
    45 16,5 125 Z451/20x16x125
    140 Z451/20x16x140
    160 Z451/20x16x160
    180 Z451/20x16x180
    200 Z451/20x16x200
    10 100 20 32 25 20 100 Z451/25x20x100
    45 20,5 125 Z451/25x20x125
    140 Z451/25x20x140
    160 Z451/25x20x160
    180 Z451/25x20x180
    200 Z451/25x20x200
