HASCO Flat Ejector Z4671-b1xs1xl1xl3 (DIN ISO 8693) (DIN 1530-4)

HASCO Flat Ejector
Z4671/b1xs1xl1xl3
hardened
WS (~1.2516)
DIN ISO 8693 (DIN 1530-4)

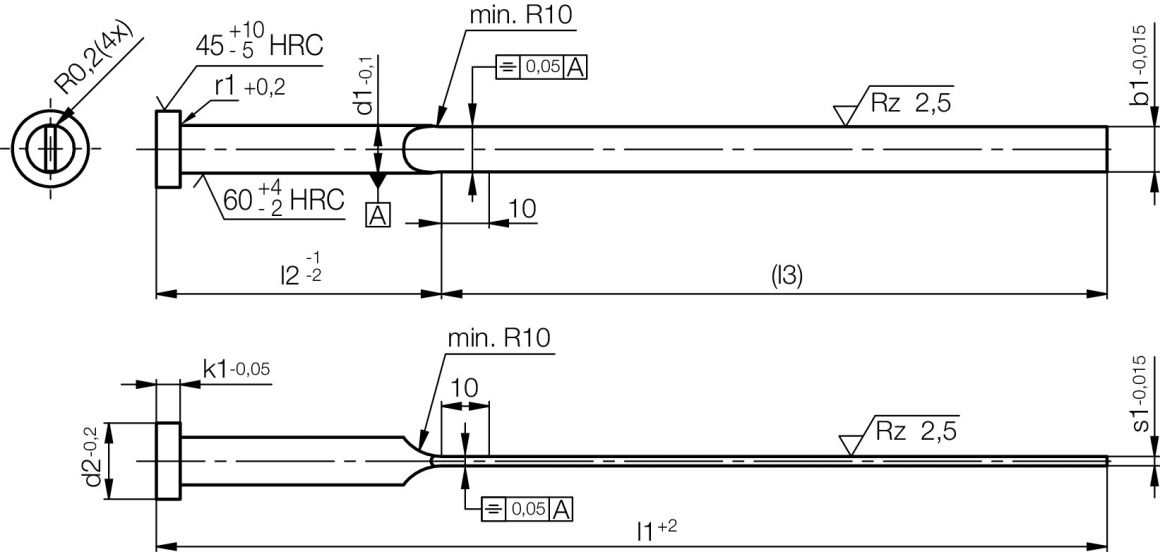

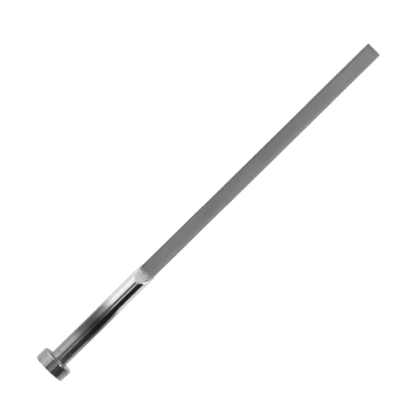

Flat ejector pin, extra long blade, four corner radii, hardened


r1	k1	l2	d2	d1	b1	s1	l1	l3	Product
0,3	3	32	6	3	2,8	0,8	125	93	Z4671/2,8x0,8x125x93
		60					160	100	Z4671/2,8x0,8x160x100
		32						128	Z4671/2,8x0,8x160x128
		60					200	140	Z4671/2,8x0,8x200x140
		32				1	125	93	Z4671/2,8x1x125x93
		60					160	100	Z4671/2,8x1x160x100
		32						128	Z4671/2,8x1x160x128
		60					200	140	Z4671/2,8x1x200x140
		32	8	4,2	3,8	0,8	125	93	Z4671/3,8x0,8x125x93
		60					160	100	Z4671/3,8x0,8x160x100
		32						128	Z4671/3,8x0,8x160x128
		60					200	140	Z4671/3,8x0,8x200x140
							250	190	Z4671/3,8x0,8x250x190
		32				1	125	93	Z4671/3,8x1x125x93
		60					160	100	Z4671/3,8x1x160x100
		32						128	Z4671/3,8x1x160x128
		60					200	140	Z4671/3,8x1x200x140
							250	190	Z4671/3,8x1x250x190
		32				1,2	125	93	Z4671/3,8x1,2x125x93
		60					160	100	Z4671/3,8x1,2x160x100
		32						128	Z4671/3,8x1,2x160x128
		60					200	140	Z4671/3,8x1,2x200x140
							250	190	Z4671/3,8x1,2x250x190
		32	10	5	4,5	1	125	93	Z4671/4,5x1x125x93
		60					160	100	Z4671/4,5x1x160x100
		32						128	Z4671/4,5x1x160x128
		60					200	140	Z4671/4,5x1x200x140
							250	190	Z4671/4,5x1x250x190
		32				1,2	125	93	Z4671/4,5x1,2x125x93
		60					160	100	Z4671/4,5x1,2x160x100
		32						128	Z4671/4,5x1,2x160x128
		60					200	140	Z4671/4,5x1,2x200x140
							250	190	Z4671/4,5x1,2x250x190
		32				1,5	125	93	Z4671/4,5x1,5x125x93
		60					160	100	Z4671/4,5x1,5x160x100
		32						128	Z4671/4,5x1,5x160x128
		60					200	140	Z4671/4,5x1,5x200x140
							250	190	Z4671/4,5x1,5x250x190
0,5	5	32	12	6	5,5	1	125	93	Z4671/5,5x1x125x93
		60					160	100	Z4671/5,5x1x160x100
		32						128	Z4671/5,5x1x160x128
		60					200	140	Z4671/5,5x1x200x140
							250	190	Z4671/5,5x1x250x190
		80					315	235	Z4671/5,5x1x315x235
		32				1,2	125	93	Z4671/5,5x1,2x125x93
		60					160	100	Z4671/5,5x1,2x160x100
		32						128	Z4671/5,5x1,2x160x128
		60					200	140	Z4671/5,5x1,2x200x140
							250	190	Z4671/5,5x1,2x250x190
		80					315	235	Z4671/5,5x1,2x315x235
		60				1,5	160	100	Z4671/5,5x1,5x160x100
		32						128	Z4671/5,5x1,5x160x128
		60					200	140	Z4671/5,5x1,5x200x140
							250	190	Z4671/5,5x1,5x250x190
		80					315	235	Z4671/5,5x1,5x315x235
		60				2	160	100	Z4671/5,5x2x160x100
		32						128	Z4671/5,5x2x160x128
		60					200	140	Z4671/5,5x2x200x140
							250	190	Z4671/5,5x2x250x190
		80					315	235	Z4671/5,5x2x315x235
		32	14	8	7,5	1,2	125	93	Z4671/7,5x1,2x125x93
		60					160	100	Z4671/7,5x1,2x160x100
		32						128	Z4671/7,5x1,2x160x128
		60					200	140	Z4671/7,5x1,2x200x140
							250	190	Z4671/7,5x1,2x250x190
		80					315	235	Z4671/7,5x1,2x315x235
		32				1,5	125	93	Z4671/7,5x1,5x125x93
		60					160	100	Z4671/7,5x1,5x160x100
		32						128	Z4671/7,5x1,5x160x128
		60					200	140	Z4671/7,5x1,5x200x140
							250	190	Z4671/7,5x1,5x250x190
		80					315	235	Z4671/7,5x1,5x315x235
		60				2	160	100	Z4671/7,5x2x160x100
		32						128	Z4671/7,5x2x160x128
		60					200	140	Z4671/7,5x2x200x140
							250	190	Z4671/7,5x2x250x190
		80					315	235	Z4671/7,5x2x315x235
		60	16	10	9,5	1,5	160	100	Z4671/9,5x1,5x160x100
		32						128	Z4671/9,5x1,5x160x128
		60					200	140	Z4671/9,5x1,5x200x140
							250	190	Z4671/9,5x1,5x250x190
		80					315	235	Z4671/9,5x1,5x315x235
		32				2	160	128	Z4671/9,5x2x160x128
		60					200	140	Z4671/9,5x2x200x140
							250	190	Z4671/9,5x2x250x190
		80					315	235	Z4671/9,5x2x315x235
