Mold Parts
HASCO Guide Pillars
Z0100/d1xl1
720 HV30
~ 1.0401
~ DIN ISO 8404-A

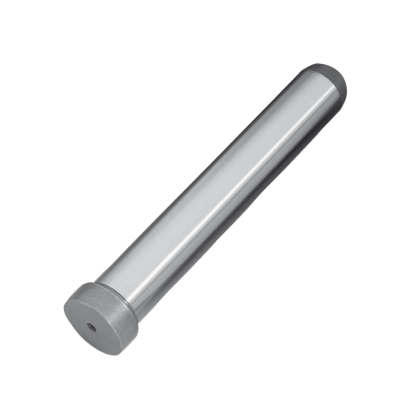

Guide pillar, for ball bearing
Z0100/d1xl1
720 HV30
~ 1.0401
~ DIN ISO 8404-A
Guide pillar, for ball bearing
| k1 | l2 | d2 | d1 | l1 | Product |
| 3 | 4 | 12 | 9 | 60 | Z0100/9x60 |
| 80 | Z0100/9x80 | ||||
| 100 | Z0100/9x100 | ||||
| 120 | Z0100/9x120 | ||||
| 10 | 60 | Z0100/10x60 | |||
| 80 | Z0100/10x80 | ||||
| 100 | Z0100/10x100 | ||||
| 120 | Z0100/10x120 | ||||
| 140 | Z0100/10x140 | ||||
| 160 | Z0100/10x160 | ||||
| 6 | 7 | 16 | 12 | 60 | Z0100/12x60 |
| 80 | Z0100/12x80 | ||||
| 100 | Z0100/12x100 | ||||
| 120 | Z0100/12x120 | ||||
| 140 | Z0100/12x140 | ||||
| 160 | Z0100/12x160 | ||||
| 8 | 18 | 14 | 60 | Z0100/14x60 | |
| 80 | Z0100/14x80 | ||||
| 100 | Z0100/14x100 | ||||
| 120 | Z0100/14x120 | ||||
| 140 | Z0100/14x140 | ||||
| 160 | Z0100/14x160 | ||||
| 180 | Z0100/14x180 | ||||
| 22 | 18 | 80 | Z0100/18x80 | ||
| 100 | Z0100/18x100 | ||||
| 120 | Z0100/18x120 | ||||
| 140 | Z0100/18x140 | ||||
| 160 | Z0100/18x160 | ||||
| 180 | Z0100/18x180 | ||||
| 200 | Z0100/18x200 | ||||
| 240 | Z0100/18x240 | ||||
| 15 | 28 | 24 | 100 | Z0100/24x100 | |
| 120 | Z0100/24x120 | ||||
| 140 | Z0100/24x140 | ||||
| 160 | Z0100/24x160 | ||||
| 180 | Z0100/24x180 | ||||
| 200 | Z0100/24x200 | ||||
| 220 | Z0100/24x220 | ||||
| 240 | Z0100/24x240 | ||||
| 300 | Z0100/24x300 | ||||
| 36 | 30 | 100 | Z0100/30x100 | ||
| 120 | Z0100/30x120 | ||||
| 160 | Z0100/30x160 | ||||
| 200 | Z0100/30x200 | ||||
| 240 | Z0100/30x240 | ||||
| 300 | Z0100/30x300 | ||||
| 360 | Z0100/30x360 | ||||
| 32 | 100 | Z0100/32x100 | |||
| 120 | Z0100/32x120 | ||||
| 160 | Z0100/32x160 | ||||
| 200 | Z0100/32x200 | ||||
| 240 | Z0100/32x240 | ||||
| 300 | Z0100/32x300 | ||||
| 360 | Z0100/32x360 |
