Mold Parts
HASCO Guide Pillars
Z0101/d1xd2
1.2516

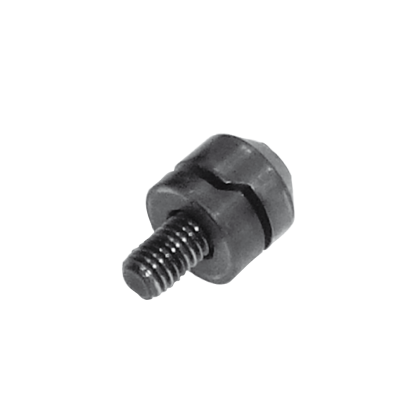

Clamping disc
Z0101/d1xd2
1.2516
Clamping disc
The new HASCO clamping disc Z 0101/.... is used to reliably fix angle pin Z 010 /... in place by clamping in the cavity plate.
A screw hole through the entire cavity plate and deep screw bores is no longer required.
Clamping disc Z 0101/... is also available mounted on the associated angle pin Z 010 /... as a complete package Z 0102 /... .
Special Features
- Easy installation and removal, from the parting line
- No screw connection required any more
- Outlay on unnecessarily long screw holes through cavity plates is avoided
- Simple replacement without need to dismantle the mould
- Secure fastening through eccentric clamping
- Available in conjunction with the Z 010 /... angle pin
- Matching set screw Z 35 /... included in the delivery

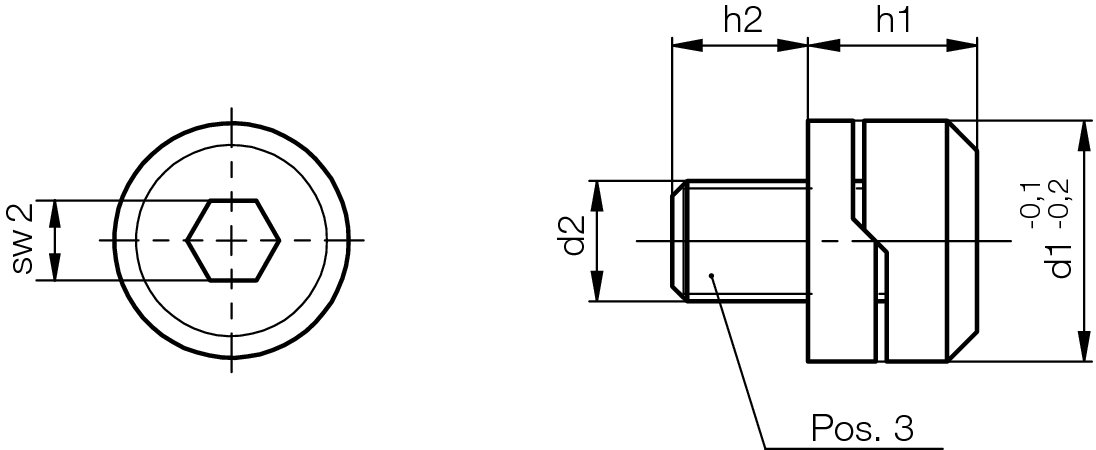

| Pos3 | sw2 | h2 | h1 | d1 | d2 | Product |
| Z35/6x20 | 3 | 10 | 9,8 | 10 | M6 | Z0101/10x6 |
| 12 | Z0101/12x6 | |||||
| Z35/6x25 | 11 | 13,8 | 14 | Z0101/14x6 | ||
| Z35/8x25 | 4 | 15 | M8 | Z0101/15x8 | ||
| 16 | Z0101/16x8 | |||||
| Z35/10x30 | 5 | 15 | 15,3 | 18 | M10 | Z0101/18x10 |
| 14 | 16,3 | 20 | Z0101/20x10 | |||
| 22 | Z0101/22x10 | |||||
| Z35/12x40 | 6 | 19 | 21,3 | 24 | M12 | Z0101/24x12 |
| Z35/16x40 | 8 | 18 | 21,8 | 30 | M16 | Z0101/30x16 |
| 32 | Z0101/32x16 |
