HASCO Guide Pillars
Z011/d1xl1
720 HV30
~ 1.0401

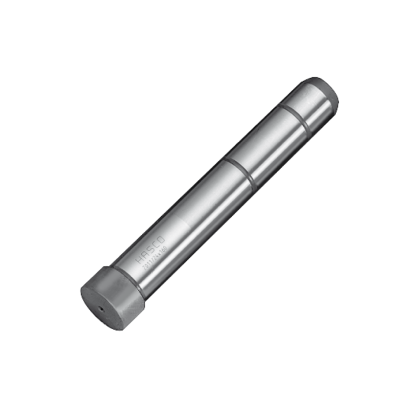

Guide Pillar, with snug fit
Z011/d1xl1
720 HV30
~ 1.0401
Guide Pillar, with snug fit

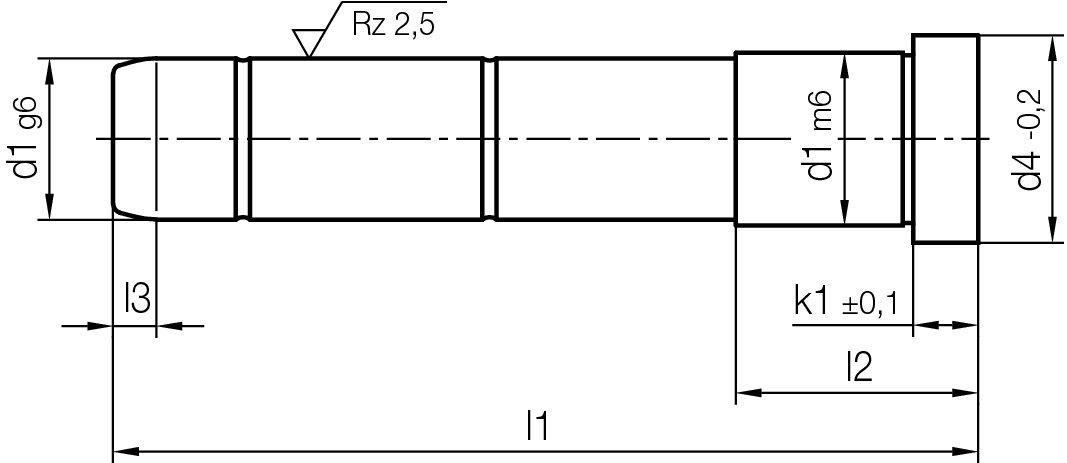

| k1 | l3 | l2 | d4 | d1 | l1 | Product |
| 3 | 4 | 17 | 12 | 10 | 40 | Z011/10x40 |
| 60 | Z011/10x60 | |||||
| 22 | 80 | Z011/10x80 | ||||
| 27 | 100 | Z011/10x100 | ||||
| 6 | 7 | 17 | 16 | 12 | 60 | Z011/12x60 |
| 22 | 80 | Z011/12x80 | ||||
| 27 | 100 | Z011/12x100 | ||||
| 36 | 120 | Z011/12x120 | ||||
| 140 | Z011/12x140 | |||||
| 160 | Z011/12x160 | |||||
| 8 | 17 | 18 | 14 | 60 | Z011/14x60 | |
| 22 | 80 | Z011/14x80 | ||||
| 27 | 100 | Z011/14x100 | ||||
| 36 | 120 | Z011/14x120 | ||||
| 46 | 140 | Z011/14x140 | ||||
| 160 | Z011/14x160 | |||||
| 22 | 20 | 16 | 60 | Z011/16x60 | ||
| 27 | 80 | Z011/16x80 | ||||
| 100 | Z011/16x100 | |||||
| 36 | 120 | Z011/16x120 | ||||
| 46 | 140 | Z011/16x140 | ||||
| 160 | Z011/16x160 | |||||
| 27 | 22 | 18 | 80 | Z011/18x80 | ||
| 100 | Z011/18x100 | |||||
| 36 | 120 | Z011/18x120 | ||||
| 46 | 140 | Z011/18x140 | ||||
| 160 | Z011/18x160 | |||||
| 56 | 180 | Z011/18x180 | ||||
| 200 | Z011/18x200 | |||||
| 220 | Z011/18x220 | |||||
| 27 | 24 | 20 | 80 | Z011/20x80 | ||
| 100 | Z011/20x100 | |||||
| 36 | 120 | Z011/20x120 | ||||
| 46 | 140 | Z011/20x140 | ||||
| 160 | Z011/20x160 | |||||
| 56 | 180 | Z011/20x180 | ||||
| 200 | Z011/20x200 | |||||
| 220 | Z011/20x220 | |||||
| 15 | 36 | 26 | 22 | 100 | Z011/22x100 | |
| 46 | 120 | Z011/22x120 | ||||
| 140 | Z011/22x140 | |||||
| 56 | 160 | Z011/22x160 | ||||
| 180 | Z011/22x180 | |||||
| 76 | 200 | Z011/22x200 | ||||
| 220 | Z011/22x220 | |||||
| 240 | Z011/22x240 | |||||
| 280 | Z011/22x280 | |||||
| 36 | 28 | 24 | 100 | Z011/24x100 | ||
| 46 | 120 | Z011/24x120 | ||||
| 140 | Z011/24x140 | |||||
| 56 | 160 | Z011/24x160 | ||||
| 180 | Z011/24x180 | |||||
| 76 | 200 | Z011/24x200 | ||||
| 220 | Z011/24x220 | |||||
| 240 | Z011/24x240 | |||||
| 280 | Z011/24x280 | |||||
| 56 | 36 | 30 | 120 | Z011/30x120 | ||
| 140 | Z011/30x140 | |||||
| 160 | Z011/30x160 | |||||
| 180 | Z011/30x180 | |||||
| 200 | Z011/30x200 | |||||
| 76 | 220 | Z011/30x220 | ||||
| 240 | Z011/30x240 | |||||
| 280 | Z011/30x280 | |||||
| 320 | Z011/30x320 | |||||
| 360 | Z011/30x360 | |||||
| 56 | 32 | 120 | Z011/32x120 | |||
| 140 | Z011/32x140 | |||||
| 160 | Z011/32x160 | |||||
| 180 | Z011/32x180 | |||||
| 200 | Z011/32x200 | |||||
| 220 | Z011/32x220 | |||||
| 76 | 240 | Z011/32x240 | ||||
| 280 | Z011/32x280 | |||||
| 320 | Z011/32x320 | |||||
| 360 | Z011/32x360 | |||||
| 10 | 56 | 48 | 40 | 200 | Z011/40x200 | |
| 76 | 240 | Z011/40x240 | ||||
| 96 | 300 | Z011/40x300 | ||||
| 360 | Z011/40x360 | |||||
| 56 | 58 | 50 | 200 | Z011/50x200 | ||
| 76 | 240 | Z011/50x240 | ||||
| 96 | 300 | Z011/50x300 | ||||
| 20 | 12 | 76 | 68 | 60 | 240 | Z011/60x240 |
| 96 | 300 | Z011/60x300 | ||||
| 116 | 360 | Z011/60x360 |
