    HASCO Guide Pillars Z040-l1xd1xl2

    add to cart Inquiry Now
    HASCO Guide Pillars
    Z040/l1xd1xl2
    ~ 1.0401
    with DLC coating

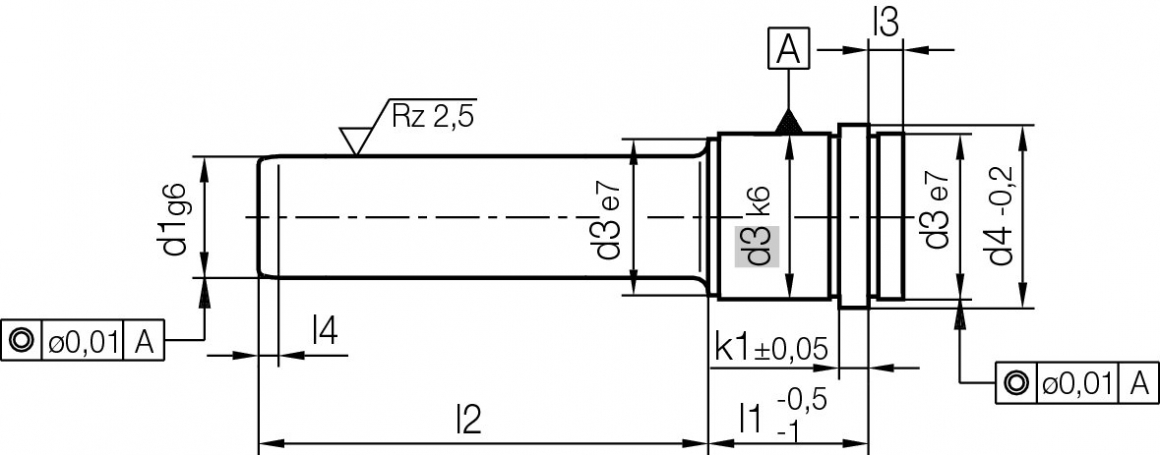

    Guide pillar, DLC, stepped location head

    k1 l4 l3 d4 d3 l1 d1 l2 Product
    3 4 3 16 14 22 9 25 Z040/22x9x25
    35 Z040/22x9x35
    10 25 Z040/22x10x25
    35 Z040/22x10x35
    6 7 9 25 20 14 30 Z040/22x14x30
    50 Z040/22x14x50
    70 Z040/22x14x70
    90 Z040/22x14x90
    15 30 Z040/22x15x30
    50 Z040/22x15x50
    70 Z040/22x15x70
    90 Z040/22x15x90
    3 4 3 16 14 27 9 30 Z040/27x9x30
    50 Z040/27x9x50
    10 30 Z040/27x10x30
    50 Z040/27x10x50
    6 7 9 25 20 14 30 Z040/27x14x30
    45 Z040/27x14x45
    65 Z040/27x14x65
    85 Z040/27x14x85
    15 30 Z040/27x15x30
    45 Z040/27x15x45
    65 Z040/27x15x65
    85 Z040/27x15x85
    31 26 18 35 Z040/27x18x35
    45 Z040/27x18x45
    65 Z040/27x18x65
    85 Z040/27x18x85
    105 Z040/27x18x105
    20 35 Z040/27x20x35
    45 Z040/27x20x45
    65 Z040/27x20x65
    85 Z040/27x20x85
    105 Z040/27x20x105
    35 30 22 35 Z040/27x22x35
    45 Z040/27x22x45
    65 Z040/27x22x65
    85 Z040/27x22x85
    105 Z040/27x22x105
    125 Z040/27x22x125
    165 Z040/27x22x165
    205 Z040/27x22x205
    24 35 Z040/27x24x35
    45 Z040/27x24x45
    65 Z040/27x24x65
    85 Z040/27x24x85
    105 Z040/27x24x105
    125 Z040/27x24x125
    165 Z040/27x24x165
    205 Z040/27x24x205
    3 4 3 16 14 36 9 25 Z040/36x9x25
    45 Z040/36x9x45
    10 25 Z040/36x10x25
    45 Z040/36x10x45
    6 7 9 25 20 14 35 Z040/36x14x35
    55 Z040/36x14x55
    75 Z040/36x14x75
    95 Z040/36x14x95
    15 35 Z040/36x15x35
    55 Z040/36x15x55
    75 Z040/36x15x75
    95 Z040/36x15x95
    31 26 18 35 Z040/36x18x35
    55 Z040/36x18x55
    75 Z040/36x18x75
    95 Z040/36x18x95
    115 Z040/36x18x115
    135 Z040/36x18x135
    20 35 Z040/36x20x35
    55 Z040/36x20x55
    75 Z040/36x20x75
    95 Z040/36x20x95
    115 Z040/36x20x115
    135 Z040/36x20x135
    35 30 22 35 Z040/36x22x35
    55 Z040/36x22x55
    75 Z040/36x22x75
    95 Z040/36x22x95
    115 Z040/36x22x115
    135 Z040/36x22x135
    165 Z040/36x22x165
    205 Z040/36x22x205
    24 35 Z040/36x24x35
    55 Z040/36x24x55
    75 Z040/36x24x75
    95 Z040/36x24x95
    115 Z040/36x24x115
    135 Z040/36x24x135
    165 Z040/36x24x165
    205 Z040/36x24x205
    47 42 30 55 Z040/36x30x55
    75 Z040/36x30x75
    115 Z040/36x30x115
    155 Z040/36x30x155
    245 Z040/36x30x245
    32 55 Z040/36x32x55
    75 Z040/36x32x75
    115 Z040/36x32x115
    155 Z040/36x32x155
    245 Z040/36x32x245
    3 4 3 16 14 46 9 45 Z040/46x9x45
    10 Z040/46x10x45
    6 7 9 25 20 14 35 Z040/46x14x35
    45 Z040/46x14x45
    65 Z040/46x14x65
    85 Z040/46x14x85
    15 35 Z040/46x15x35
    45 Z040/46x15x45
    65 Z040/46x15x65
    85 Z040/46x15x85
    31 26 18 35 Z040/46x18x35
    45 Z040/46x18x45
    65 Z040/46x18x65
    85 Z040/46x18x85
    135 Z040/46x18x135
    20 35 Z040/46x20x35
    45 Z040/46x20x45
    65 Z040/46x20x65
    85 Z040/46x20x85
    135 Z040/46x20x135
    35 30 22 35 Z040/46x22x35
    45 Z040/46x22x45
    65 Z040/46x22x65
    85 Z040/46x22x85
    105 Z040/46x22x105
    125 Z040/46x22x125
    165 Z040/46x22x165
    24 35 Z040/46x24x35
    45 Z040/46x24x45
    65 Z040/46x24x65
    85 Z040/46x24x85
    105 Z040/46x24x105
    125 Z040/46x24x125
    165 Z040/46x24x165
    47 42 30 65 Z040/46x30x65
    85 Z040/46x30x85
    105 Z040/46x30x105
    125 Z040/46x30x125
    165 Z040/46x30x165
    245 Z040/46x30x245
    32 65 Z040/46x32x65
    85 Z040/46x32x85
    105 Z040/46x32x105
    125 Z040/46x32x125
    165 Z040/46x32x165
    245 Z040/46x32x245
    3 4 3 16 14 56 9 60 Z040/56x9x60
    10 Z040/56x10x60
    6 7 9 25 20 14 35 Z040/56x14x35
    55 Z040/56x14x55
    75 Z040/56x14x75
    95 Z040/56x14x95
    15 35 Z040/56x15x35
    55 Z040/56x15x55
    75 Z040/56x15x75
    95 Z040/56x15x95
    31 26 18 35 Z040/56x18x35
    55 Z040/56x18x55
    75 Z040/56x18x75
    20 35 Z040/56x20x35
    55 Z040/56x20x55
    75 Z040/56x20x75
    35 30 22 35 Z040/56x22x35
    55 Z040/56x22x55
    75 Z040/56x22x75
    95 Z040/56x22x95
    115 Z040/56x22x115
    165 Z040/56x22x165
    205 Z040/56x22x205
    24 35 Z040/56x24x35
    55 Z040/56x24x55
    75 Z040/56x24x75
    95 Z040/56x24x95
    115 Z040/56x24x115
    165 Z040/56x24x165
    205 Z040/56x24x205
    47 42 30 55 Z040/56x30x55
    75 Z040/56x30x75
    95 Z040/56x30x95
    135 Z040/56x30x135
    175 Z040/56x30x175
    245 Z040/56x30x245
    32 55 Z040/56x32x55
    75 Z040/56x32x75
    95 Z040/56x32x95
    135 Z040/56x32x135
    175 Z040/56x32x175
    245 Z040/56x32x245
    3 4 3 16 14 66 9 45 Z040/66x9x45
    10 Z040/66x10x45
    6 7 9 25 20 14 55 Z040/66x14x55
    65 Z040/66x14x65
    95 Z040/66x14x95
    15 55 Z040/66x15x55
    65 Z040/66x15x65
    95 Z040/66x15x95
    31 26 18 55 Z040/66x18x55
    75 Z040/66x18x75
    95 Z040/66x18x95
    145 Z040/66x18x145
    20 55 Z040/66x20x55
    75 Z040/66x20x75
    95 Z040/66x20x95
    145 Z040/66x20x145
    35 30 22 35 Z040/66x22x35
    55 Z040/66x22x55
    75 Z040/66x22x75
    95 Z040/66x22x95
    155 Z040/66x22x155
    24 35 Z040/66x24x35
    55 Z040/66x24x55
    75 Z040/66x24x75
    95 Z040/66x24x95
    155 Z040/66x24x155
    47 42 30 55 Z040/66x30x55
    75 Z040/66x30x75
    95 Z040/66x30x95
    115 Z040/66x30x115
    175 Z040/66x30x175
    295 Z040/66x30x295
    32 55 Z040/66x32x55
    75 Z040/66x32x75
    95 Z040/66x32x95
    115 Z040/66x32x115
    175 Z040/66x32x175
    295 Z040/66x32x295
    25 20 76 14 55 Z040/76x14x55
    95 Z040/76x14x95
    15 55 Z040/76x15x55
    95 Z040/76x15x95
    31 26 18 55 Z040/76x18x55
    95 Z040/76x18x95
    135 Z040/76x18x135
    20 55 Z040/76x20x55
    95 Z040/76x20x95
    135 Z040/76x20x135
    35 30 22 55 Z040/76x22x55
    75 Z040/76x22x75
    95 Z040/76x22x95
    115 Z040/76x22x115
    145 Z040/76x22x145
    24 55 Z040/76x24x55
    75 Z040/76x24x75
    95 Z040/76x24x95
    115 Z040/76x24x115
    145 Z040/76x24x145
    47 42 30 55 Z040/76x30x55
    75 Z040/76x30x75
    95 Z040/76x30x95
    115 Z040/76x30x115
    155 Z040/76x30x155
    225 Z040/76x30x225
    32 55 Z040/76x32x55
    75 Z040/76x32x75
    95 Z040/76x32x95
    115 Z040/76x32x115
    155 Z040/76x32x155
    225 Z040/76x32x225
    10 10 12 60 54 40 115 Z040/76x40x115
    42 Z040/76x42x115
    6 7 9 25 20 86 14 55 Z040/86x14x55
    95 Z040/86x14x95
    15 55 Z040/86x15x55
    95 Z040/86x15x95
    31 26 18 55 Z040/86x18x55
    95 Z040/86x18x95
    125 Z040/86x18x125
    20 55 Z040/86x20x55
    95 Z040/86x20x95
    125 Z040/86x20x125
    35 30 22 55 Z040/86x22x55
    75 Z040/86x22x75
    95 Z040/86x22x95
    115 Z040/86x22x115
    135 Z040/86x22x135
    24 55 Z040/86x24x55
    75 Z040/86x24x75
    95 Z040/86x24x95
    115 Z040/86x24x115
    135 Z040/86x24x135
    47 42 30 75 Z040/86x30x75
    95 Z040/86x30x95
    115 Z040/86x30x115
    155 Z040/86x30x155
    195 Z040/86x30x195
    225 Z040/86x30x225
    32 75 Z040/86x32x75
    95 Z040/86x32x95
    115 Z040/86x32x115
    155 Z040/86x32x155
    195 Z040/86x32x195
    225 Z040/86x32x225
    31 26 96 18 95 Z040/96x18x95
    20 Z040/96x20x95
    35 30 22 55 Z040/96x22x55
    75 Z040/96x22x75
    95 Z040/96x22x95
    125 Z040/96x22x125
    24 55 Z040/96x24x55
    75 Z040/96x24x75
    95 Z040/96x24x95
    125 Z040/96x24x125
    47 42 30 75 Z040/96x30x75
    95 Z040/96x30x95
    115 Z040/96x30x115
    155 Z040/96x30x155
    205 Z040/96x30x205
    32 75 Z040/96x32x75
    95 Z040/96x32x95
    115 Z040/96x32x115
    155 Z040/96x32x155
    205 Z040/96x32x205
    10 10 12 60 54 40 155 Z040/96x40x155
    42 Z040/96x42x155
    6 7 9 31 26 116 18 115 Z040/116x18x115
    20 Z040/116x20x115
    35 30 22 75 Z040/116x22x75
    115 Z040/116x22x115
    155 Z040/116x22x155
    24 75 Z040/116x24x75
    115 Z040/116x24x115
    155 Z040/116x24x155
    47 42 30 75 Z040/116x30x75
    115 Z040/116x30x115
    155 Z040/116x30x155
    32 75 Z040/116x32x75
    115 Z040/116x32x115
    155 Z040/116x32x155
    10 10 12 60 54 40 135 Z040/116x40x135
    195 Z040/116x40x195
    42 135 Z040/116x42x135
    195 Z040/116x42x195
    6 7 9 35 30 136 22 135 Z040/136x22x135
    24 Z040/136x24x135
    47 42 30 95 Z040/136x30x95
    115 Z040/136x30x115
    155 Z040/136x30x155
    32 95 Z040/136x32x95
    115 Z040/136x32x115
    155 Z040/136x32x155
    10 10 12 60 54 40 95 Z040/136x40x95
    135 Z040/136x40x135
    42 95 Z040/136x42x95
    135 Z040/136x42x135
    6 7 9 35 30 156 22 155 Z040/156x22x155
    24 Z040/156x24x155
    47 42 30 115 Z040/156x30x115
    155 Z040/156x30x155
    32 115 Z040/156x32x115
    155 Z040/156x32x155
    196 30 Z040/196x30x155
    32 Z040/196x32x155
    10 10 12 60 54 40 Z040/196x40x155
    195 Z040/196x40x195
    42 155 Z040/196x42x155
    195 Z040/196x42x195
