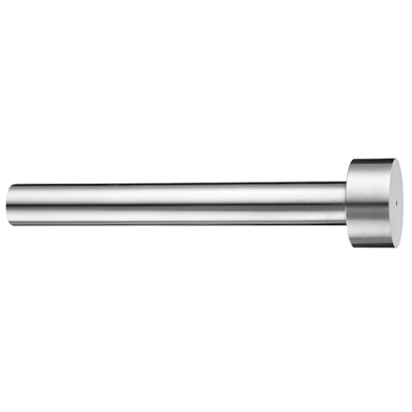

HASCO Sprue Bushing
Z510/d2xl1xd1
53 HRC
1.2826
Sprue bushing, blank
Z510/d2xl1xd1
53 HRC
1.2826
Sprue bushing, blank
Supplied as a hardened blank, both the length and runner channel of the new HASCO sprue bushing Z510/... can be individually aligned by customers.
Special Features
- Hardened blank
- Extra long length, adjustable to suit application
- Starting hole for EDM
- Runner channel can be made as required

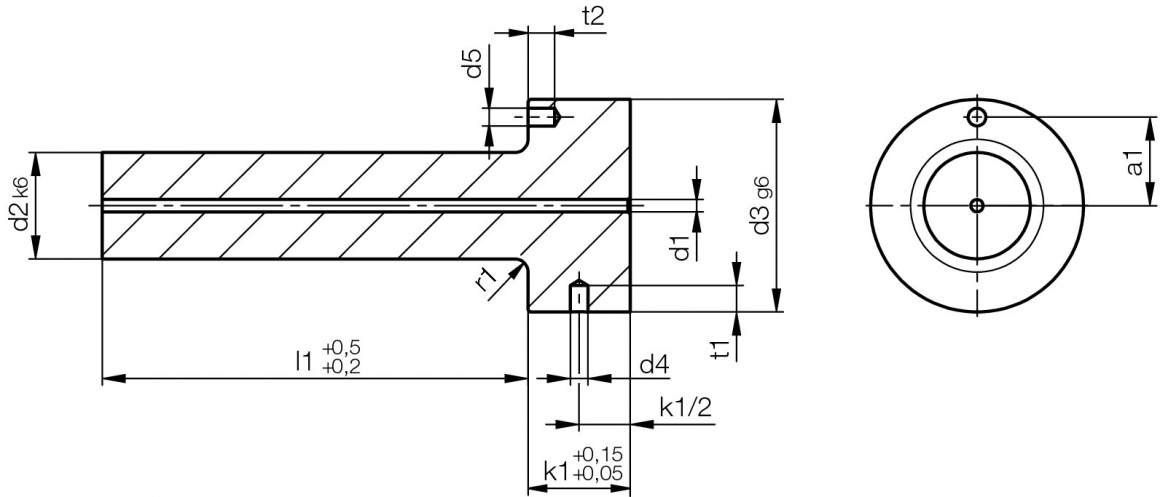

| r1 | k1 | t2 | t1 | a1 | d5 | d4 | d3 | d2 | l1 | d1 | Product |
| 3 | 13 | 6 | 6 | 11 | 4 | 4 | 28 | 12 | 46 | 1,4 | Z510/12x46x1,4 |
| 96 | Z510/12x96x1,4 | ||||||||||
| 18 | 15 | 38 | 18 | 1,9 | Z510/18x96x1,9 | ||||||
| 146 | Z510/18x146x1,9 | ||||||||||
| 176 | Z510/18x176x1,9 | ||||||||||
| 23 | 20 | 48 | 24 | 96 | 2,8 | Z510/24x96x2,8 | |||||
| 156 | Z510/24x156x2,8 | ||||||||||
| 196 | Z510/24x196x2,8 |
