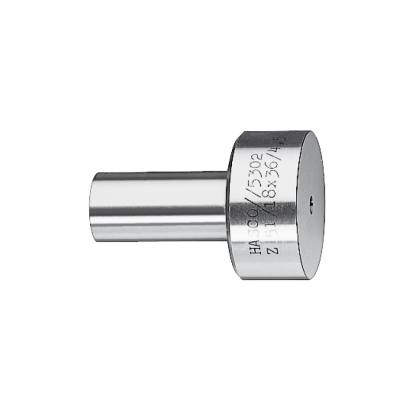

HASCO Sprue Bushing
Z512/d2xl1xd1
55 HRC
1.2826
DIN ISO 10072 (DIN 16752)
Sprue bushing, without calotte radius
Z512/d2xl1xd1
55 HRC
1.2826
DIN ISO 10072 (DIN 16752)
Sprue bushing, without calotte radius
The HASCO-Sprue bushings in connection with sprue puller Z53/... are used for economic indirect gating in injection- and compression moulds for the processing of thermoplastics- and thermoset materials.
Special Features
- Provides for simple solutions for gating on subrunner
- Bushings are available with or with- out radius to suit machine nozzle
- Ready-to-install, hardened and ground
- Available with taper 0,5°; 1° and 1°30’

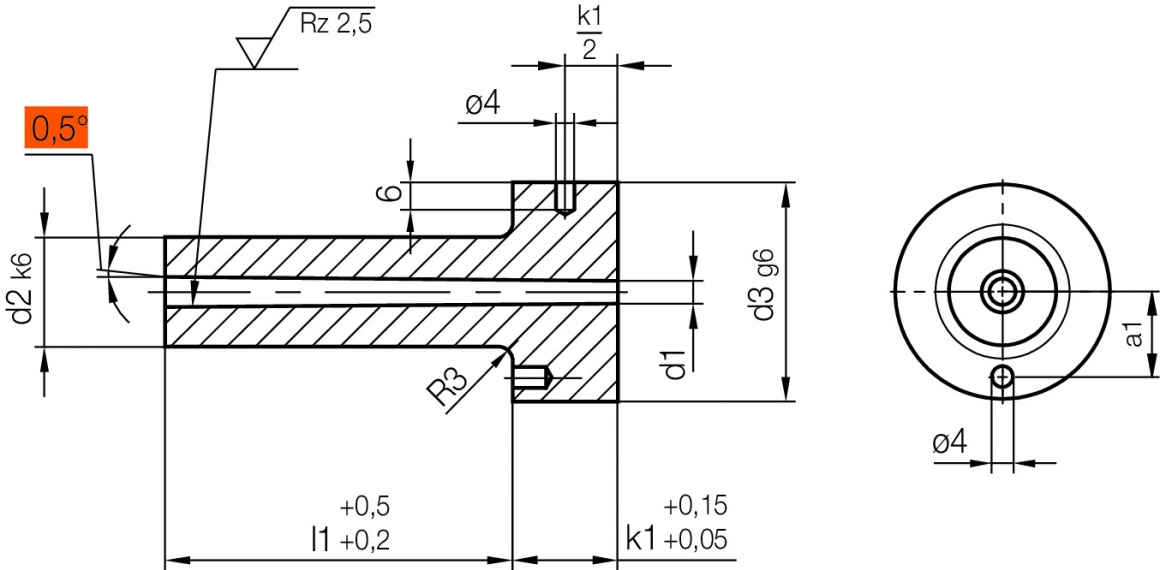

| k1 | a1 | d3 | d2 | l1 | d1 | Product |
| 13 | 11 | 28 | 12 | 27 | 2,5 | Z512/12x27x2,5 |
| Z512/12x36x2,5 | ||||||
| Z512/12x36x3,5 | ||||||
| 46 | Z512/12x46x2,5 | |||||
| Z512/12x46x3,5 | ||||||
| 56 | Z512/12x56x2,5 | |||||
| 3,5 | Z512/12x56x3,5 | |||||
| Z512/12x66x3,5 | ||||||
| Z512/12x76x3,5 | ||||||
| 18 | 15 | 38 | 18 | 3 | Z512/18x46x3 | |
| 56 | Z512/18x56x3 | |||||
| Z512/18x56x4 | ||||||
| 66 | Z512/18x66x3 | |||||
| Z512/18x66x4 | ||||||
| 76 | Z512/18x76x3 | |||||
| Z512/18x76x4 | ||||||
| 86 | Z512/18x86x3 | |||||
| Z512/18x86x4 | ||||||
| Z512/18x96x3 | ||||||
| Z512/18x96x4 | ||||||
| 116 | Z512/18x116x4 |
