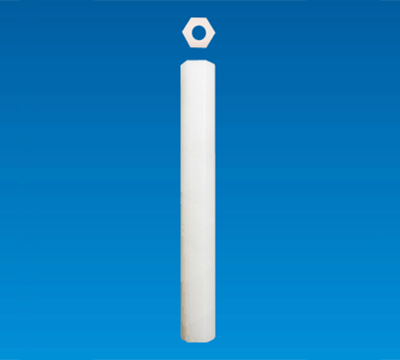

HEXAGONAL SPACER SUPPORT H-57

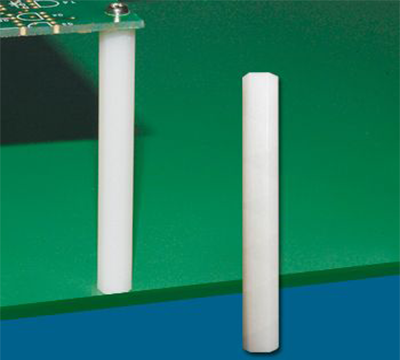

- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Use with Tapping screw to increase the power of holding PCB.
HEXAGONAL SPACER SUPPORT H-57
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Use with Tapping screw to increase the power of holding PCB.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- SCREW: M3 TAPPING SCREW

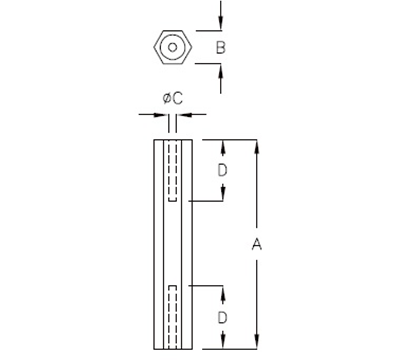

| PART NO | A | B | C | D | PACKAGE |
|---|---|---|---|---|---|
|
H-57
|
57.8 | 5.9 | 2.5 | 10.0 | 200 |
|
H-65
|
65.5 | 5.6 | 2.6 | 14.9 | |
|
H-105
|
105 | 9.9 | 2.6 | 14.6 | 100 |
|
H-140
|
139.5 | 9.9 | 2.6 | 14.6 |
