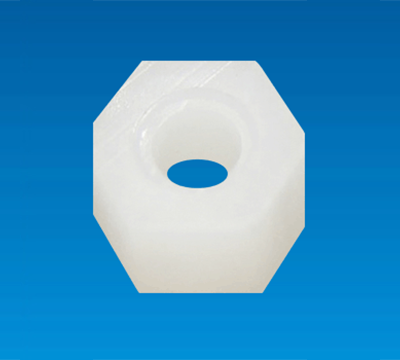

HEXAGONAL SPACER SUPPORT HHB-06D

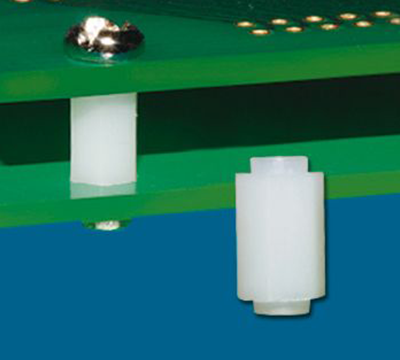

- Joint PCB with Chassis and other board.
- Provides distance, space and support between Circuit boards.
- Use with Tapping screw to increase the power of holding PCB.
HEXAGONAL SPACER SUPPORT HHB-06D
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis and other board.
- Provides distance, space and support between Circuit boards.
- Use with Tapping screw to increase the power of holding PCB.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- SCREW: M2 TAPPING SCREW

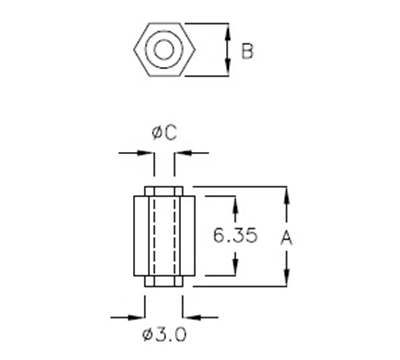

| PART NO | A | B | C | PACKAGE |
|---|---|---|---|---|
| HHB-06D | 7.95 | 4.15 | Ø1.6 | 1000 |
