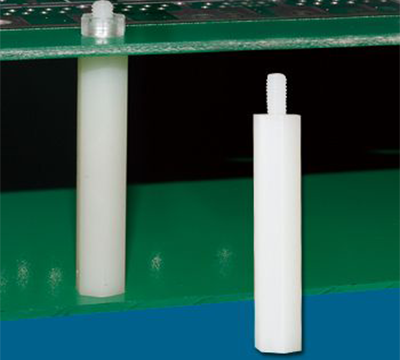

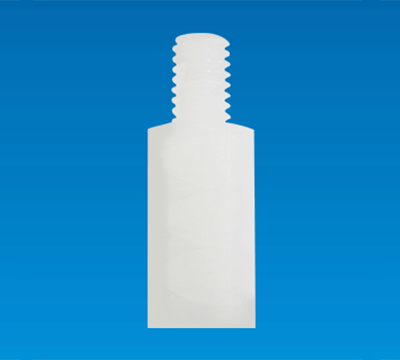

HEXAGONAL SPACER SUPPORT WITH BOLT THK-35
- Joint PCB with Chassis and other board.
- Provides distance, space and support between Circuit boards.
- Screw design, associate with nut to fasten the joint board.
HEXAGONAL SPACER SUPPORT WITH BOLT THK-35
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis and other board.
- Provides distance, space and support between Circuit boards.
- Screw design, associate with nut to fasten the joint board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- SCREW: TAPPING SCREW

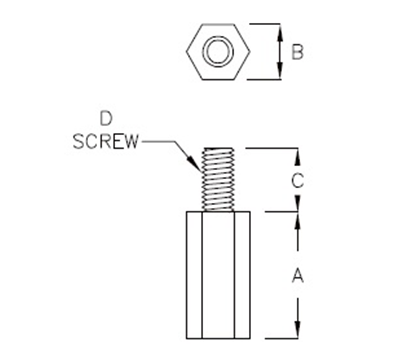

| PART NO | A | B | C | D | PACKAGE |
|---|---|---|---|---|---|
| THK-35 | 34.5 | 6.0 | 6.0 | M3 | 1000 |
| THK-36M | 36.0 | 6.0 | 6.0 | M3 | 1000 |
| THK-37M | 37.0 | 6.0 | 6.0 | M3 | 1000 |
