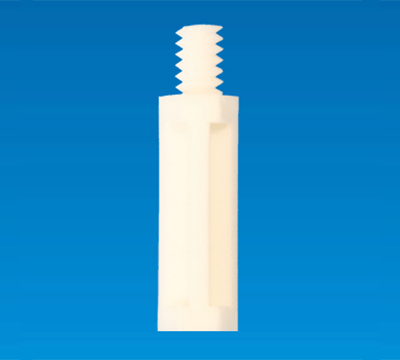

HEXAGONAL SPACER SUPPORT WITH BOLT THM-17

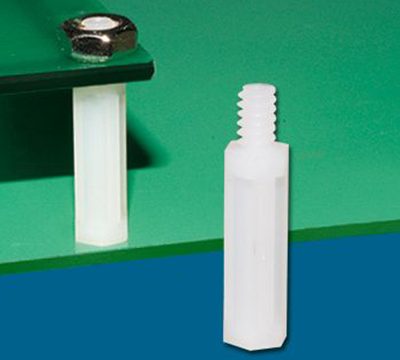

- Joint PCB with Chassis and other board.
- Provides distance, space and support between Circuit boards.
- Screw design, associate with nut to fasten the joint board.
HEXAGONAL SPACER SUPPORT WITH BOLT THM-17
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis and other board.
- Provides distance, space and support between Circuit boards.
- Screw design, associate with nut to fasten the joint board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

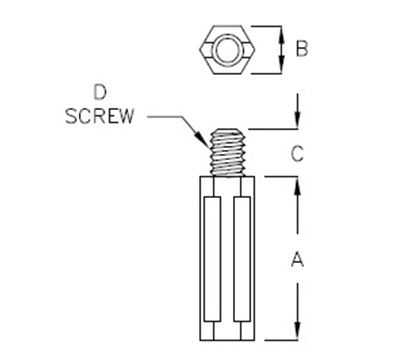

| PART NO | A | B | C | D | PACKAGE |
|---|---|---|---|---|---|
| THM-17 | 17.0 | 5.0 | 5.0 | #6-32 | 1000 |
