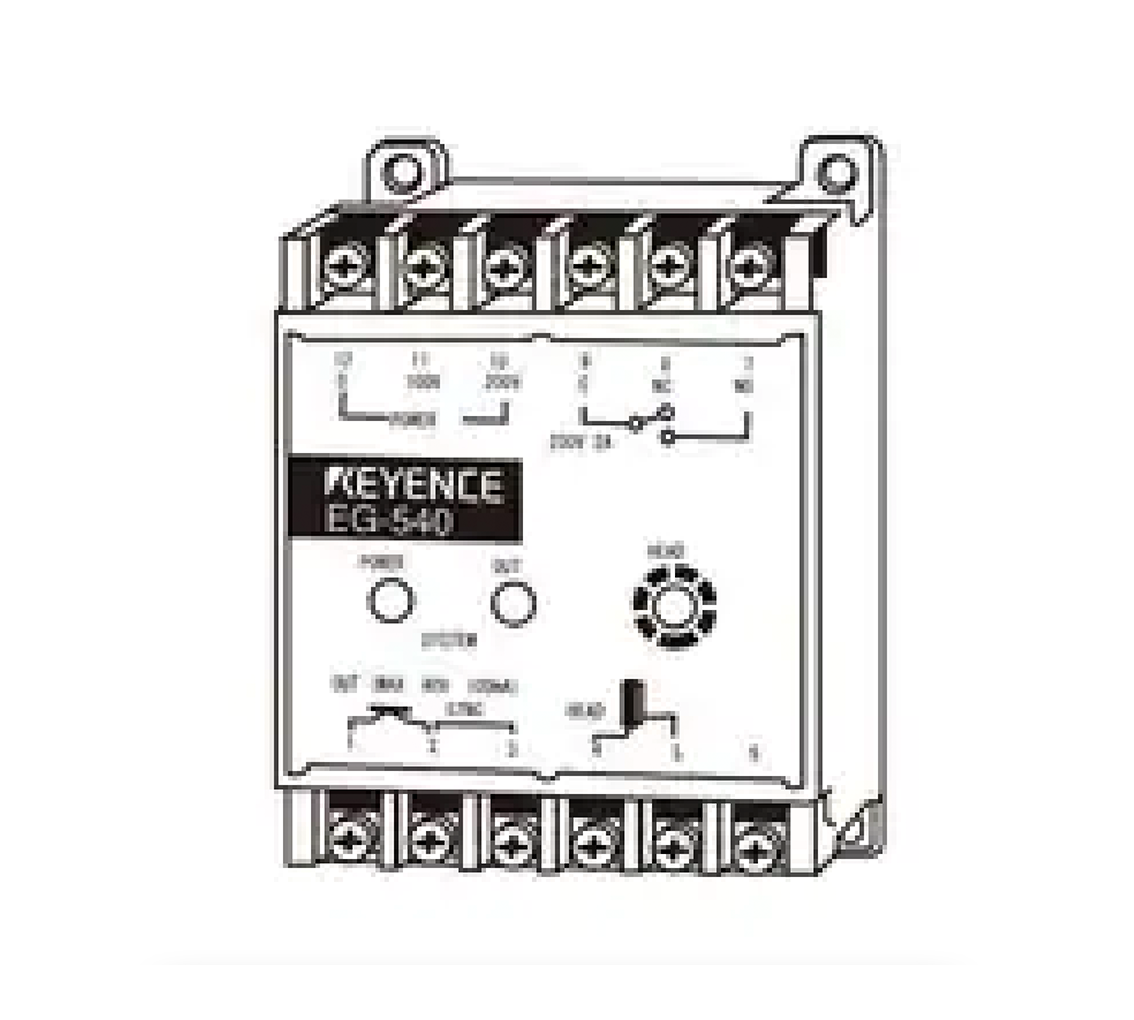

High Accuracy Positioning Sensor EG-540

Model

EG-540^*1

Type

AC

Sensitivity adjustment

15-turn trimmer

Function

Operation mode

N.O./N.C. switch-selectable
(contact output only)

Operation mode

External synchronization

Equipment (contact output only)

Output

Control output 1 (NPN)

100 mA max. (40 V max.) Residual voltage： 1 V max.

Control output 2

SPDT, 250 VAC, 2 A max. (resistive load)

Disconnection alarm output
(NPN)

―

Response
time (Relay contact)

1 ms

10 ms

OFF-delay time

65 ms (contact output only)

Temperature characteristics

0.08%/°C^*2

Rating

Power voltage

110/120/220/240 VAC ±10 %, 50/60 Hz

Power consumption

5 VA max.

Environmental resistance

Ambient temperature

0 to +50 °C 32 to 122 °F

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

Weight

Approx. 330 g
