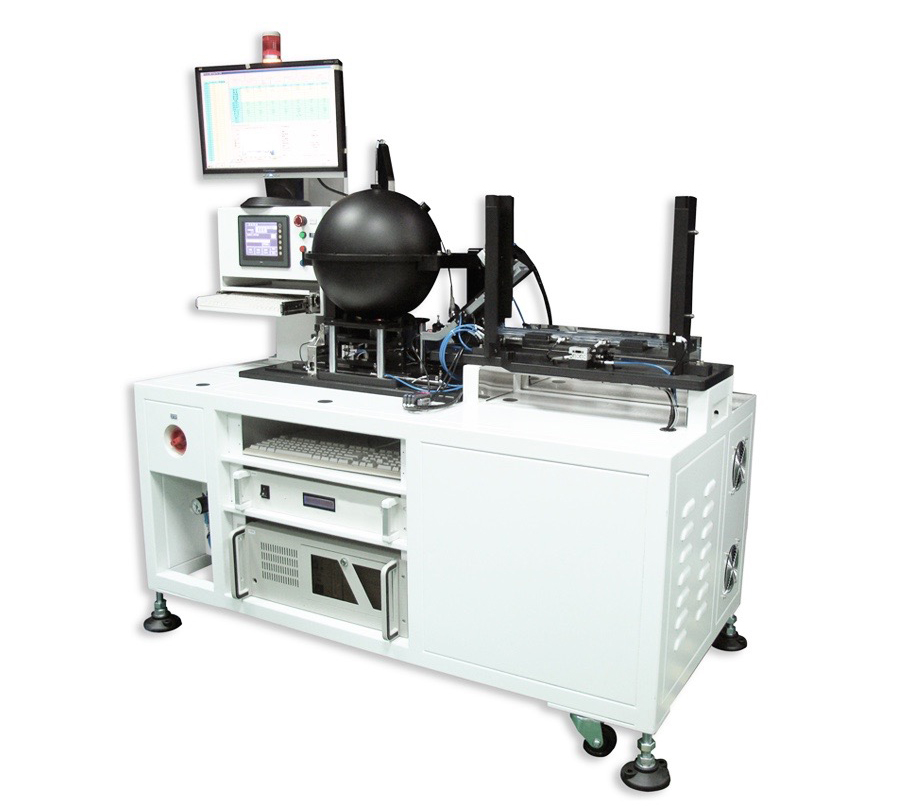

Semi-Automatic High Power LED Sorting Machine
High Power LED Sorting Machine
Features:
- Dual Test Function: Available for LED, this is in packaged or only after phosphor step.
- User-Friendly Operating Interface: Equipped touch panel to perform the real-time monitoring of binning result.
| Specification | Model No.: S204 |
| Throughput | 35 sec / 20 pcs (with measurement time < 150 msec) |
| Applicable Type | High Power LED Emitte 2 x 10 pcs (2 lead or 6 lead) |
| Dimensions (mm) | 600(W) x 850(L) x 650(H) |
| Air Pressure (kg/cm²) | 5 |
| Power Supply (V/Hz) | AC 220 / 50 |
