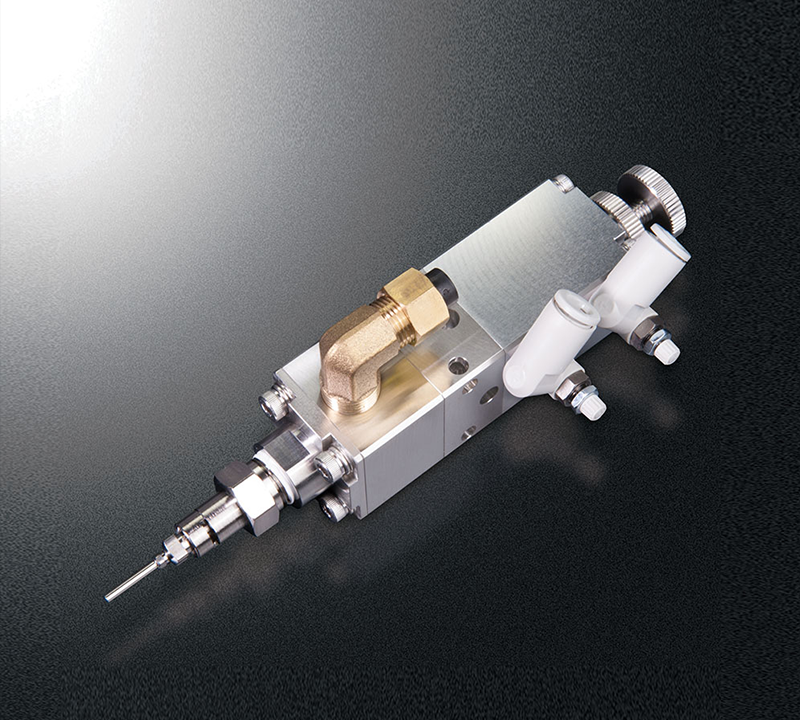

High pressure needle control valve Musashi HPV-2NC-2 P

Model	HPV-2NC-2 P
Driving system	Pneumatic driven system
Minimum dispensing amount	10 µL
Compatible viscosity	Up to 300 Pa·s
Applicable fluid materials	Grease
Control air supply pressure range	0.35 to 0.6 MPa
Fluid material supply pressure range	Max. 20 MPa
Maximum number of cycles	500 times/min.
Fluid intake port	Rc1/4 (fluid feed joint ordered separately)
Fluid dispensing port	Luer lock
Control air	One-touch joint for φ6 outer diameter tube (with speed controller)
Operating temperature range	5 to 60°C
Wetted part material	Stainless steel, Fluorine resin, Fluorine rubber, Polyethylene
Weight	480 g

Note: The dispensing volume, compatible viscosity, and max. response count shown in the specifications above are only for reference.
