Mold Parts

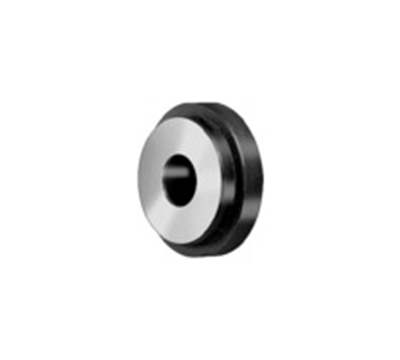

Holding disc

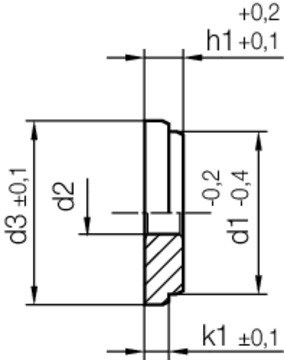

| k1 | h1 | d3 | d2 | d1 | Product |
|---|---|---|---|---|---|
| 3,2 | 5 | 16 | 5,5 | 14 |
Z056/14
|
| 6,3 | 9 | 25,5 | 9 | 20 |
Z056/20
|
| 6,3 | 9 | 31,5 | 9 | 26 |
Z056/26
|
| 6,3 | 10 | 35,5 | 11 | 30 |
Z056/30
|
| 6,3 | 10 | 47,5 | 11 | 42 |
Z056/42
|
