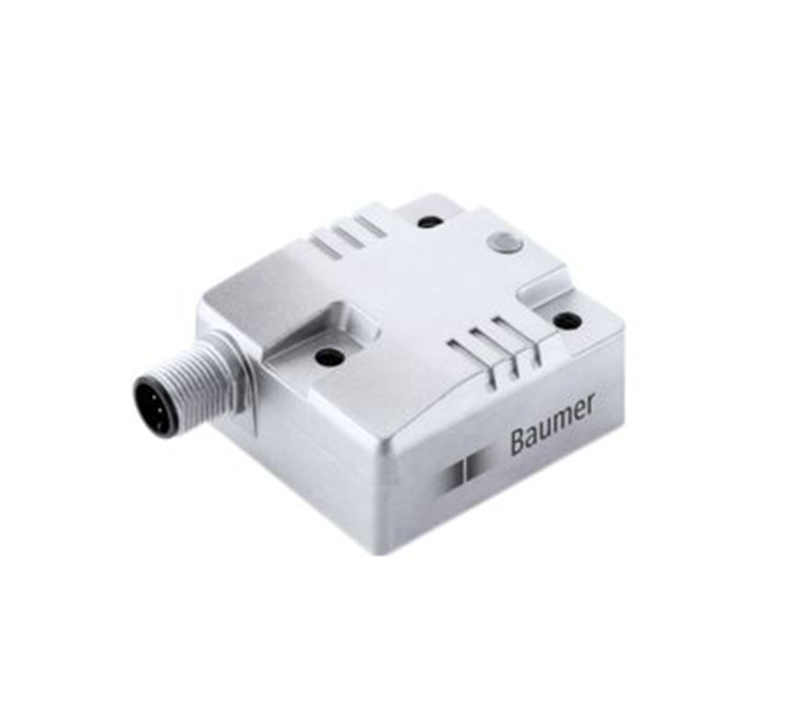

Sensor
| Technical data - electrical ratings | |
| Voltage supply | 8...36 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | ≤40 mA (24 VDC) |
| Initializing time | ≤0.5 s after power on |
| Interfaces | CANopen®, SAE J1939, Analog (4...20 mA / 0.5...4.5 V / 0...5 V / 0...10 V) |
| Load resistor | ≥1 kΩ / voltage output ≤800 Ω / current output |
| Measuring range | 0...90°, 0...120°, 0...180°, 0...270°, 0...360° |
| Resolution | 0.1 ° CANopen® 0.1 ° SAE J1939 12 Bit Analog |
| Accuracy (+25 °C) | Typ. ±0.1° |
| Temperature coefficient | 0.008 °/K |
| Repeatability | ±0.1 ° (+25 °C) |
| Sensing rate | 1600 Hz |
| Limit frequency | 0.1...25 Hz, 2. order / low-pass filter (Default: 5 Hz) |
| Interference immunity | DIN EN 61000-6-2 ECE Reg. No. 10R04 ISO 7637-2 ISO 11452-2 / ISO 11452-5 |
| Emitted interference | DIN EN 61000-6-4 ECE Reg. No. 10R04 ISO 7637-2 / EN 55025 |
| Programmable parameters | Preset and offset Filter |
| Diagnostic function | Parameter error |
| Status indicator | DUO-LED integrated in housing |
| Approval | UL approval / E63076 |
| Technical data - mechanical design | |
| Dimensions W x H x L | 48 x 24 x 52 mm |
| Protection DIN EN 60529 | IP 66, IP 67, IP 68, IP 69K |
| Material | Housing: aluminium, coated |
| Corrosion protection | IEC 60068-2-52 Salt mist for ambient conditions C5-M (CX) according to ISO 12944-2 |
| Operating temperature | -40...+85 °C (see general information) |
| Resistance | DIN EN 60068-2-6 Vibration 20 g, 60-2000 Hz DIN EN 60068-2-27 Shock 200 g, 6 ms |
| Weight approx. | 95 g |
| Connection | Flange connector M12, 8-pin Flange connector M12, 5-pin Cable 1 m |
| Instruction | Use in safety functions exclusively based on Application Note and MTTFd reliability prediction (request separately). |
