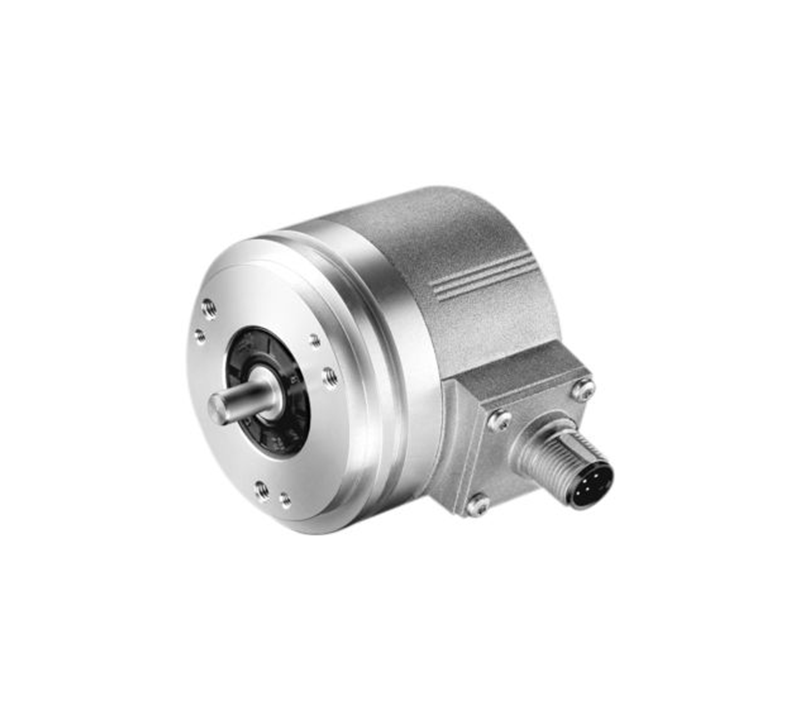

Sensor
| Technical Data - Electrical Ratings | |
|---|---|
| Voltage Supply | 4.75...30 VDC |
| Reverse Polarity Protection | Yes |
| Short-circuit Proof | Yes |
| Consumption w/o Load | ≤70 mA |
| Initializing Time | ≤30 ms after power on |
| Pulses per Revolution | 1...65536 |
| Duty Cycle | 45...55 % typical at 1024, 2048 ppr (further see table Duty cycle) |
| Reference Signal | Zero pulse 90° or 180° |
| Sensing Method | Optical |
| Output Frequency | ≤300 kHz (TTL), ≤160 kHz (HTL) |
| Output Signals | A+, B+, R+, A-, B-, R- |
| Output Stages | TTL/RS422, HTL/push-pull |
| Programmable Parameters | Output level TTL/HTL, Pulse number 1...65536, Zero pulse width 90°/180°, Zero pulse position, Signal sequence |
| Interference Immunity | DIN EN 61000-6-2 |
| Emitted Interference | DIN EN 61000-6-3 |
| Approval | UL 508 / CSA 22.2 |
| Technical Data - Mechanical Design | |
| Size (Flange) | ø58 mm |
| Shaft Type | ø6 x 10 mm, solid shaft with flat |
| Admitted Shaft Load | ≤40 N axial, ≤80 N radial |
| Flange | Synchro flange |
| Protection DIN EN 60529 | IP 65 (without shaft seal), IP 67 (with shaft seal) |
| Operating Speed | ≤6000 rpm (+20 °C, IP 67), ≤12000 rpm (+20 °C, IP 65) |
| Starting Torque | ≤0.015 Nm (+20 °C, IP 65), ≤0.02 Nm (+20 °C, IP 67) |
| Materials | Housing: aluminium die-cast, Flange: aluminium, Solid shaft: stainless steel |
| Operating Temperature | -40...+100 °C |
| Relative Humidity | 90 % non-condensing |
| Resistance | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz, DIN EN 60068-2-27 Shock 300 g, 6 ms |
| Connection | Flange connector M12, 8-pin, Flange connector M23, 12-pin, Cable |
| Weight Approx. | 300 g |
