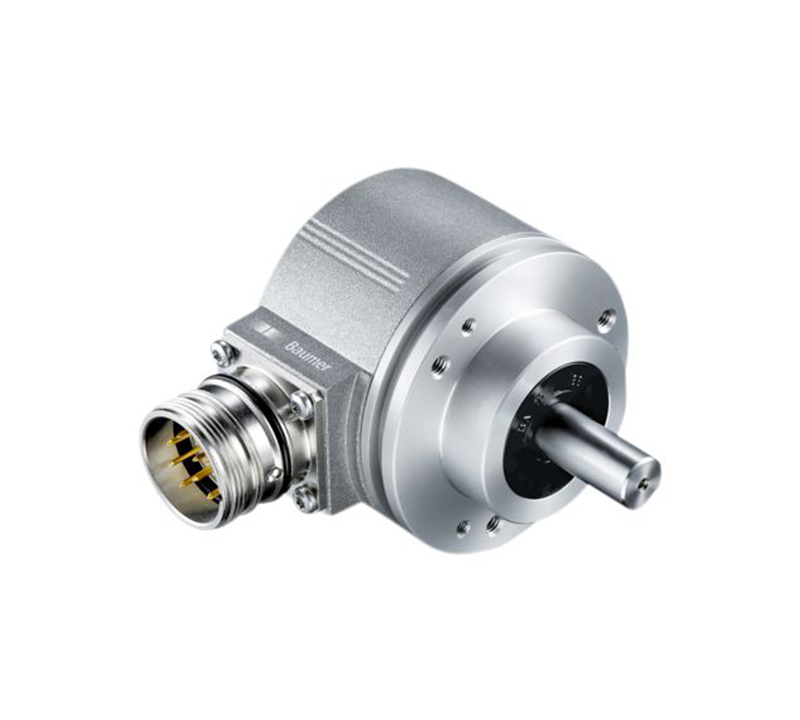

Sensor
| Technical Data - Electrical Ratings | |
|---|---|
| Voltage supply | 4.75...30 VDC |
| Reverse polarity protection | Yes |
| Short-circuit proof | Yes |
| Consumption w/o load | ≤70 mA |
| Initializing time | ≤30 ms after power on |
| Pulses per revolution | 1...65536 |
| Duty cycle | 45...55 % typical at 1024, 2048 ppr (further see table Duty cycle) |
| Reference signal | Zero pulse 90° or 180° |
| Sensing method | Optical |
| Output frequency | ≤300 kHz (TTL) ≤160 kHz (HTL) |
| Output signals | A+, B+, R+, A-, B-, R- |
| Output stages | TTL/RS422 HTL/push-pull |
| Programmable parameters | Output level TTL/HTL Pulse number 1...65536 Zero pulse width 90°/180° Zero pulse position Signal sequence |
| Interference immunity | DIN EN 61000-6-2 |
| Emitted interference | DIN EN 61000-6-3 |
| Approval | UL 508 / CSA 22.2 |
| Technical Data - Mechanical Design | |
| Size (flange) | ø58 mm |
| Shaft type | ø8...15 mm (through hollow shaft) |
| Protection DIN EN 60529 | IP 65 (without shaft seal), IP 67 (with shaft seal) |
| Operating speed | ≤3000 rpm (+20 °C, IP 67) ≤6000 rpm (+20 °C, IP 65) |
| Starting torque | ≤0.025 Nm (+20 °C, IP 65) ≤0.03 Nm (+20 °C, IP 67) |
| Materials | Housing: aluminium die-cast Flange: aluminium |
| Operating temperature | -40...+100 °C |
| Relative humidity | 90 % non-condensing |
| Resistance | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 250 g, 6 ms |
| Connection | Flange connector M12, 8-pin Flange connector M23, 12-pin Cable |
| Weight approx. | 300 g |
