Sensor
|
Model |

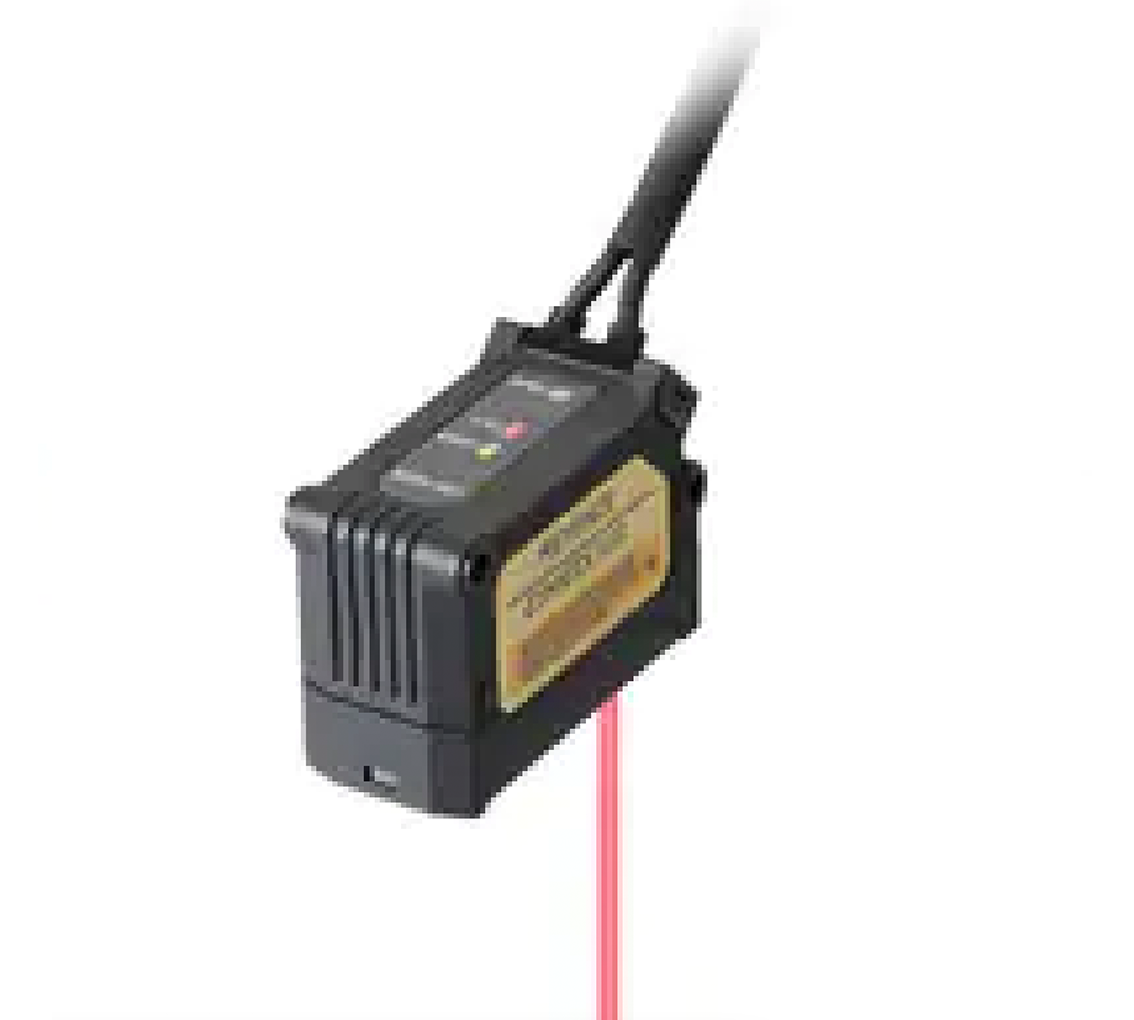

GV-H45 |
|||
|
Type |
Short-range |
|||
|
Light source |
Visible semiconductor laser, Wavelength: 655 nm |
|||
|
Laser class |
FDA (CDRH) |
Class 2 (560 µW) |
||
|
IEC 60825-1 |
||||
|
JIS C6802 |
||||
|
Detection distance |
20 to 45 mm 0.79" to 1.77" |
|||
|
Possible display range |
259 to -34 |
|||
|
Standard detection deviation |
0.5 mm 0.02" |
|||
|
Spot diameter |
Approx. ø0.1 mm ø0.004" |
|||
|
Operation status indicators |
Control output: Red LED/Laser radiation emission indicator: Green LED/1 spot indicator: Green LED |
|||
|
Environmental resistance |
Enclosure rating |
IP67 |
||
|
Operating ambientluminance |
Incandescent lamp |
10000ℓx |
||
|
Sunlight |
20000ℓx |
|||
|
Ambient temperature |
-10 to +50 °C 14 to 122 °F (No freezing) |
|||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis |
|||
|
Material |
Housing material: PBT, Display: Polyarylate, Metal: SUS304, Lens cover: Glass, Cable: PVC |
|||
|
Weight |
Approx. 120 g*2 |
|||
|
*1 General guideline for amplifier display values relative to detection distance (when distance display mode is set to normal). |
||||
