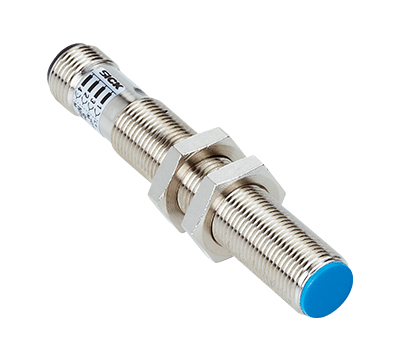

    Inductive proximity sensor IM Standar SICK

    Type:IM12-02BAO-ZU0
    Part No.:7902119
    Features
    Housing Cylindrical thread design
    Housing Standard
    Thread size M12 x 1
    Diameter Ø 12 mm
    Sensing range Sn 2 mm
    Safe sensing range Sa 1.62 mm
    Installation type Flush
    Switching frequency 25 Hz
    Connection type Cable, 2-wire, 2 m
    Output function NC
    Electrical wiring AC 2-wire
    Enclosure rating IP67 1)
    • 1) According to EN 60529.
    Mechanics/electronics
    Supply voltage 20 V AC ... 250 V AC
    Voltage drop ≤ 8.5 V 1)
    Time delay before availability ≤ 10 ms
    Hysteresis 1 % ... 15 %
    Reproducibility ≤ 10 % 2) 3)
    Temperature drift (of Sr) ± 10 %
    EMC

    According to EN 60947-5-2

    As per EN 55011, class B

    Continuous current Ia

    ≤ 250 mA 4)

    ≤ 200 mA 5)

    Off-state current

    ≤ 3 mA (AC 250 V)

    ≤ 1.5 mA (AC 120 V)

    Minimum load current ≥ 8 mA
    Short-time withstand current 0.9 A 6)
    Cable material PUR/PVC
    Conductor size 0.5 mm²
    Short-circuit protection 7)
    Power-up pulse protection
    Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
    Ambient operating temperature –25 °C ... +80 °C
    Housing material Brass, nickel-plated
    Sensing face material Plastic, PBT
    Housing length 71 mm
    Thread length 50 mm
    Tightening torque, max. ≤ 7 Nm
    Items supplied Mounting nut, brass, nickel-plated (2x)
    Protection class I
    • 1) At Ia max.
    • 2) Ub and Ta constant.
    • 3) Of Sr.
    • 4) 50 °C.
    • 5) 80 °C.
    • 6) 20 ms / 0.5 Hz.
    • 7) Miniature fuse to IEC 60217-2 Sheet 1, ≤ 2 A (quick-blow).
    Reduction factors
    Note The values are reference values which may vary
    Stainless steel (V2A, 304) Approx. 0.8
    Aluminum (Al) Approx. 0.45
    Copper (Cu) Approx. 0.4
    Installation note
    Remark Associated graphic see "Installation"
    A 0 mm
    B 12 mm
    C 12 mm
    D 6 mm
    E 0 mm
    F 16 mm
    Classifications
    ECl@ss 5.0 27270101
    ECl@ss 5.1.4 27270101
    ECl@ss 6.0 27270101
    ECl@ss 6.2 27270101
    ECl@ss 7.0 27270101
    ECl@ss 8.0 27270101
    ECl@ss 8.1 27270101
    ECl@ss 9.0 27270101
    ECl@ss 10.0 27270101
    ECl@ss 11.0 27270101
    ETIM 5.0 EC002714
    ETIM 6.0 EC002714
    ETIM 7.0 EC002714
    ETIM 8.0 EC002714
    UNSPSC 16.0901 39122230
