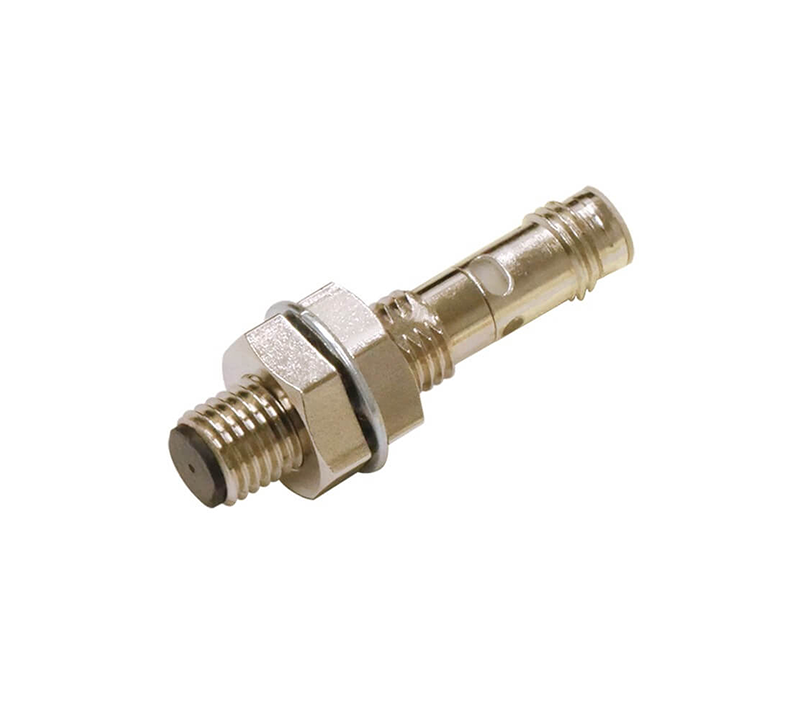

Inductive Proximity Sensor PNP Omron E2E-X3B1T8 M5 OMS
Proximity sensor, inductive, short brass body M8, shielded, 3 mm, DC, 3-wire, PNP NO, IO-Link COM3, M8 connector 3 pin
| Size | M8 |
| Mounting type | Quasi-flush |
| Sensing distance | 3 mm |
| Overall length of sensor | 39 mm |
| Thread length | 21 mm |
| Material housing | Brass, nickel plated |
| Output type | IO-Link, PNP |
| Operation mode | NO |
| Connection method | Connector M8 - 3 pin |
| Cable specifications | - |
| IO-Link function | Ｖ |
| IO-Link baud rate | COM3 (230.4 kbps) |
| Degree of protection (IP) | IP67/IP69K |
