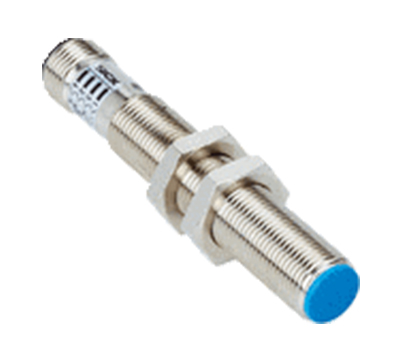

Sensor
Features
1) According to EN 60529.
| Housing | Cylindrical thread design |
| Housing | Standard |
| Thread size | M12 x 1 |
| Diameter | Ø 12 mm |
| Sensing range Sn | 4 mm |
| Safe sensing range Sa | 3.24 mm |
| Installation type | Non-flush |
| Switching frequency | 25 Hz |
| Connection type | Cable, 2-wire, 2 m |
| Output function | NO |
| Electrical wiring | AC 2-wire |
| Enclosure rating | IP67 1) |
Mechanics/electronics
| Supply voltage | 20 V AC ... 250 V AC |
| Voltage drop | ≤ 8.5 V 1) |
| Time delay before availability | ≤ 10 ms |
| Hysteresis | 1 % ... 15 % |
| Reproducibility | ≤ 10 % 2) 3) |
| Temperature drift (of Sr) | ± 10 % |
| EMC |
According to EN 60947-5-2 As per EN 55011, class B |
| Continuous current Ia |
≤ 250 mA 4) ≤ 200 mA 5) |
| Off-state current |
≤ 3 mA (AC 250 V) ≤ 1.5 mA (AC 120 V) |
| Minimum load current | ≥ 8 mA |
| Short-time withstand current | 0.9 A 6) |
| Cable material | PUR/PVC |
| Conductor size | 0.5 mm² |
| Short-circuit protection | – 7) |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +80 °C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PBT |
| Housing length | 71 mm |
| Thread length | 46 mm |
| Tightening torque, max. | ≤ 7 Nm |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
| Protection class | I |
- 1) At Ia max.
- 2) Ub and Ta constant.
- 3) Of Sr.
- 4) 50 °C.
- 5) 80 °C.
- 6) 20 ms / 0.5 Hz.
- 7) Miniature fuse to IEC 60217-2 Sheet 1, ≤ 2 A (quick-blow).
Safety-related parameters
Reduction factors
| MTTFD | 1,864 years |
| DCavg | 0 % |
Reduction factors
| Note | The values are reference values which may vary |
| Stainless steel (V2A, 304) | Approx. 0.8 |
| Aluminum (Al) | Approx. 0.45 |
| Copper (Cu) | Approx. 0.4 |
Installation note
| Remark | Associated graphic see "Installation" |
| A | 12 mm |
| B | 24 mm |
| C | 12 mm |
| D | 12 mm |
| E | 8 mm |
| F | 32 mm |
Classifications
| ECl@ss 5.0 | 27270101 |
| ECl@ss 5.1.4 | 27270101 |
| ECl@ss 6.0 | 27270101 |
| ECl@ss 6.2 | 27270101 |
| ECl@ss 7.0 | 27270101 |
| ECl@ss 8.0 | 27270101 |
| ECl@ss 8.1 | 27270101 |
| ECl@ss 9.0 | 27270101 |
| ECl@ss 10.0 | 27270101 |
| ECl@ss 11.0 | 27270101 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
