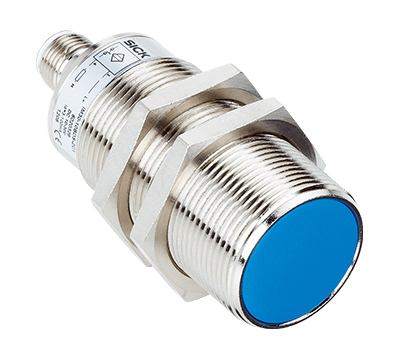

    Inductive proximity sensors IM Standard SICK

    Type:IM30-10BDS-ZC1
    Part No.:6020328
    Features
    Housing Cylindrical thread design
    Housing Standard
    Thread size M30 x 1.5
    Diameter Ø 30 mm
    Sensing range Sn 10 mm
    Safe sensing range Sa 8.1 mm
    Installation type Flush
    Switching frequency 150 Hz
    Connection type Male connector M12, 4-pin
    Output function NO
    Electrical wiring DC 2-wire
    Enclosure rating IP67 1)
    • 1) According to EN 60529.
    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC
    Ripple ≤ 10 %
    Voltage drop ≤ 2.8 V 1)
    Time delay before availability ≤ 50 ms
    Hysteresis 2 % ... 10 %
    Reproducibility ≤ 2 % 2) 3)
    Temperature drift (of Sr) ± 10 %
    EMC According to EN 60947-5-2
    Continuous current Ia ≤ 100 mA
    Off-state current ≤ 0.8 mA
    Minimum load current ≥ 3 mA
    Short-circuit protection
    Reverse polarity protection
    Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
    Ambient operating temperature –25 °C ... +70 °C
    Housing material Brass, Nickel-plated brass
    Sensing face material Plastic
    Housing length 76 mm
    Thread length 50 mm
    Tightening torque, max. 60 Nm
    • 1) At Ia max.
    • 2) Ub and Ta constant.
    • 3) Of Sr.
    Reduction factors
    Note The values are reference values which may vary
    Stainless steel (V2A, 304) Approx. 0.75
    Aluminum (Al) Approx. 0.45
    Copper (Cu) Approx. 0.35
    Brass (Br) Approx. 0.5
    Installation note
    Remark Associated graphic see "Installation"
    A 10 mm
    B 30 mm
    C 30 mm
    D 30 mm
    F 80 mm
    Classifications
    ECl@ss 5.0 27270101
    ECl@ss 5.1.4 27270101
    ECl@ss 6.0 27270101
    ECl@ss 6.2 27270101
    ECl@ss 7.0 27270101
    ECl@ss 8.0 27270101
    ECl@ss 8.1 27270101
    ECl@ss 9.0 27270101
    ECl@ss 10.0 27270101
    ECl@ss 11.0 27270101
    ETIM 5.0 EC002714
    ETIM 6.0 EC002714
    ETIM 7.0 EC002714
    ETIM 8.0 EC002714
    UNSPSC 16.0901 39122230
