    Sensor

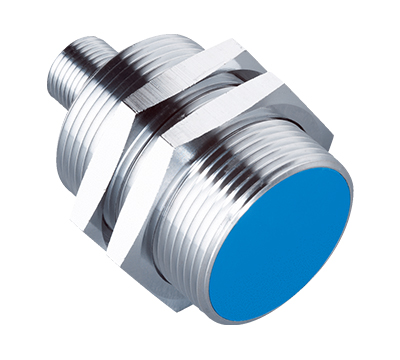

    Inductive proximity sensors IMA SICK

    Type:IMA30-20BE1ZC0K
    Part No.:6041795
    Features
    Housing Cylindrical thread design
    Thread size M30 x 1.5
    Diameter Ø 30 mm
    Sensing range Sn 0 mm ... 20 mm
    Installation type Quasi-flush
    Connection type Male connector M12, 4-pin
    Output function Analog
    Repeatability (Ta not constant) 0.3 mm 1) 2) 3)
    Repeatability (Ta constant) ± 0.05 mm
    Resolution ≤ 5 µm
    Enclosure rating IP67 4)
    Special features Analog output
    • 1) As per IEC 60947-5-2.
    • 2) Ub = DC 20 V ... 30 V.
    • 3) TA = 23 °C ± 5 °C.
    • 4) According to EN 60529: 2000-09.
    Mechanics/electronics
    Supply voltage 15 V DC ... 30 V DC
    Ripple ≤ 20 % 1)
    Time delay before availability ≤ 50 ms
    Temperature drift (of Sr) ≤ 10 %
    Current consumption, no load ≤ 12 mA 2)
    Load current ± 10 mA 3)
    Max. load resistance

    ≤ 400 Ω Ub = 15 V

    ≤ 1,000 Ω Ub = 30 V

    Output voltage QA1

    s = 0 mm: 0 V/-0 +0,4 V (23 °C)

    s = 10 mm: +5,2 V/ +-0,4 V (23 °C)

    s = 20 mm: +10 V/ +-0,4 V (23 °C)

    Output current QA2

    s = 0 mm: 4 mA/ +-0,8 mA (23 °C)

    s = 20 mm: 20 mA +/-0,8 mA (23 °C)

    Output voltage 0 V ... 10 V
    Bandwidth 200 Hz 4)
    Short-circuit protection
    Reverse polarity protection
    Ambient operating temperature –25 °C ... +70 °C 5) 6)
    Housing material Brass, chromium-plated
    Sensing face material Plastic, PTB
    Housing length 48.5 mm
    Thread length 27 mm
    Items supplied

    Mounting nut, brass, chromium-plated (2x)

    Washer, brass, chromium-plated, with locking teeth (2x)

    • 1) Of VS.
    • 2) Without load.
    • 3) At voltage output QA1.
    • 4) –3 dB if Sn = 10 mm.
    • 5) QA1 loaded, QA2 unloaded.
    • 6) QA1 loaded, QA2 loaded: see temperature reduction.
    Safety-related parameters
    MTTFD 88 years
    TM (mission time) 20 years
    Reduction factors
    Note The values are reference values which may vary
    Stainless steel (V2A, 304) Approx. 0.65
    Aluminum (Al) Approx. 0.2
    Copper (Cu) Approx. 0.17
    Brass (Br) Approx. 0.3
    Installation note
    Remark Associated graphic see "Installation"
    A 25 mm
    B 50 mm
    C 30 mm
    D 60 mm
    E 6 mm
    F 200 mm
    Classifications
    ECl@ss 5.0 27270101
    ECl@ss 5.1.4 27270101
    ECl@ss 6.0 27270101
    ECl@ss 6.2 27270101
    ECl@ss 7.0 27270101
    ECl@ss 8.0 27270101
    ECl@ss 8.1 27270101
    ECl@ss 9.0 27270101
    ECl@ss 10.0 27270101
    ECl@ss 11.0 27270101
    ETIM 5.0 EC002714
    ETIM 6.0 EC002714
    ETIM 7.0 EC002714
    ETIM 8.0 EC002714
    UNSPSC 16.0901 39122230
