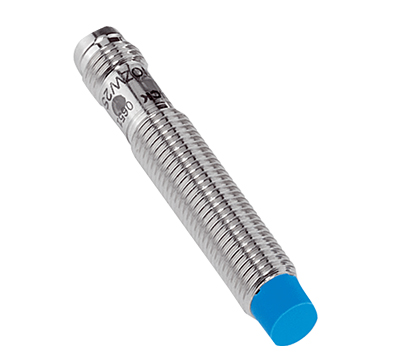

    Inductive proximity sensors IME SICK

    Type:IME08-04NDOZT0S
    Part No.:1067197
    Features
    Housing Cylindrical thread design
    Housing Standard
    Thread size M8 x 1
    Diameter Ø 8 mm
    Sensing range Sn 4 mm
    Safe sensing range Sa 3.24 mm
    Installation type Non-flush
    Switching frequency 4,000 Hz
    Connection type Connector M8, 3-pin
    Output function NC
    Electrical wiring DC 2-wire
    Enclosure rating IP67 1)
    • 1) According to EN 60529.
    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC
    Ripple ≤ 10 %
    Voltage drop

    ≤ 4 V 1)

    ≤ 4.5 V 2)

    Time delay before availability ≤ 100 ms
    Hysteresis 5 % ... 15 %
    Reproducibility ≤ 2 % 3) 4)
    Temperature drift (of Sr) ± 10 %
    EMC According to EN 60947-5-2
    Continuous current Ia ≤ 100 mA
    Off-state current ≤ 0.8 mA
    Minimum load current ≥ 3 mA
    Short-circuit protection
    Reverse polarity protection
    Power-up pulse ≤ 5 ms
    Shock and vibration resistance 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
    Ambient operating temperature –25 °C ... +75 °C
    Housing material Brass, nickel-plated
    Sensing face material Plastic, PA 66
    Housing length 50 mm
    Thread length 30 mm
    Tightening torque, max. ≤ 5 Nm
    Items supplied Mounting nut, brass, nickel-plated (2x)
    UL File No. NRKH.E181493
    • 1) At Ia = 30 mA.
    • 2) At Ia max.
    • 3) Ub and Ta constant.
    • 4) Of Sr.
    Safety-related parameters
    MTTFD 1,103 years
    DCavg 0 %
    TM (mission time) 20 years
    Reduction factors
    Note The values are reference values which may vary
    St37 steel (Fe) 1
    Stainless steel (V2A, 304) Approx. 0.8
    Aluminum (Al) Approx. 0.45
    Copper (Cu) Approx. 0.4
    Brass (Br) Approx. 0.4
    Installation note
    Remark Associated graphic see "Installation"
    A 8 mm
    B 18 mm
    C 8 mm
    D 12 mm
    E 8 mm
    F 32 mm
    Classifications
    ECl@ss 5.0 27270101
    ECl@ss 5.1.4 27270101
    ECl@ss 6.0 27270101
    ECl@ss 6.2 27270101
    ECl@ss 7.0 27270101
    ECl@ss 8.0 27270101
    ECl@ss 8.1 27270101
    ECl@ss 9.0 27270101
    ECl@ss 10.0 27270101
    ECl@ss 11.0 27270101
    ETIM 5.0 EC002714
    ETIM 6.0 EC002714
    ETIM 7.0 EC002714
    ETIM 8.0 EC002714
    UNSPSC 16.0901 39122230
