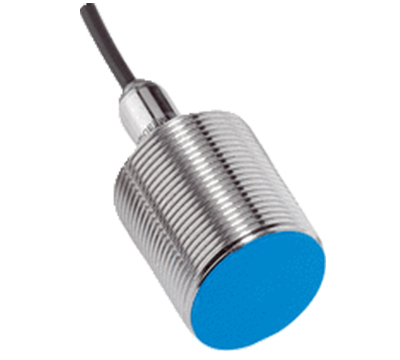

    Inductive proximity sensors SICK IME

    Type:IME30-15BDSZY2K
    Part no.:1072343
    Features
    Housing Cylindrical thread design
    Housing Short-body
    Thread size M30 x 1.5
    Diameter Ø 30 mm
    Sensing range Sn 15 mm
    Safe sensing range Sa 12.15 mm
    Installation type Flush
    Switching frequency 500 Hz
    Connection type Cable, 2-wire, 2 m, Oil-resistant
    Output function NO
    Electrical wiring DC 2-wire
    Enclosure rating IP67 1)
    • 1) According to EN 60529.
    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC
    Ripple ≤ 10 %
    Voltage drop

    ≤ 4 V 1)

    ≤ 4.5 V 2)

    Time delay before availability ≤ 100 ms
    Hysteresis 3 % ... 15 %
    Reproducibility ≤ 2 % 3) 4)
    Temperature drift (of Sr) ± 10 %
    EMC According to EN 60947-5-2
    Continuous current Ia ≤ 100 mA
    Off-state current ≤ 0.8 mA
    Minimum load current ≥ 3 mA
    Cable material PVC
    Conductor size 0.25 mm²
    Cable diameter Ø 3.9 mm
    Short-circuit protection
    Reverse polarity protection
    Power-up pulse ≤ 5 ms
    Shock and vibration resistance 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
    Ambient operating temperature –25 °C ... +75 °C
    Housing material Brass, nickel-plated
    Sensing face material Plastic, PA 66
    Housing length 51 mm
    Thread length 35 mm
    Tightening torque, max. ≤ 100 Nm
    Items supplied Mounting nut, brass, nickel-plated (2x)
    UL File No. NRKH.E181493
    • 1) At Ia = 30 mA.
    • 2) At Ia max.
    • 3) Ub and Ta constant.
    • 4) Of Sr.
    Safety-related parameters
    MTTFD 1,103 years
    DCavg 0 %
    TM (mission time) 20 years


    Reduction factors​​​​​​​
    Note The values are reference values which may vary
    St37 steel (Fe) 1
    Stainless steel (V2A, 304) Approx. 0.8
    Aluminum (Al) Approx. 0.45
    Copper (Cu) Approx. 0.4
    Brass (Br) Approx. 0.4

    Installation note
    Remark Associated graphic see "Installation"
    B 60 mm
    C 30 mm
    D 45 mm
    F 120 mm
