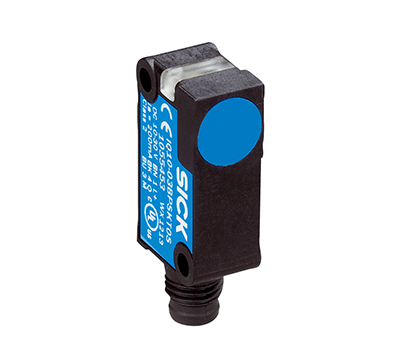

    Inductive proximity sensors SICK IQB

    Type:IQ10-06NNSKT0S
    Part no.:1055463
    add to cart Inquiry Now
    Features
    Housing Rectangular
    Dimensions (W x H x D) 10 mm x 28 mm x 16 mm
    Sensing range Sn 6 mm
    Safe sensing range Sa 4.86 mm
    Installation type Non-flush
    Switching frequency 2,000 Hz
    Connection type Connector M8, 3-pin
    Switching output NPN
    Output function NO
    Electrical wiring DC 3-wire
    Enclosure rating IP68 1)
    • 1) According to EN 60529.
    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC
    Ripple ≤ 10 % 1)
    Voltage drop ≤ 3 V 2)
    Time delay before availability ≤ 100 ms
    Hysteresis 5 % ... 15 %
    Reproducibility

    ≤ 2 % 3)

    4)
    Temperature drift (of Sr) ± 10 %
    EMC According to EN 60947-5-2
    Continuous current Ia ≤ 200 mA
    Short-circuit protection ✔
    Reverse polarity protection ✔
    Power-up pulse protection ✔
    Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
    Ambient operating temperature –25 °C ... +75 °C
    Housing material Plastic, VISTAL®
    Sensing face material Plastic, VISTAL®
    Tightening torque, max. ≤ 1 Nm
    • 1) Of VS.
    • 2) At Ia max.
    • 3) Ub and Ta constant.
    • 4) Of Sr.
    Safety-related parameters​​​​​​​
    MTTFD 1,730 years
    DCavg 0 %

    Reduction factors
    Note The values are reference values which may vary
    Stainless steel (V2A, 304) 0.7
    Aluminum (Al) 0.5
    Copper (Cu) 0.35
    Brass (Br) 0.5

    Installation note
    Remark Associated graphic see "Installation"
    A 7 mm
    B 30 mm
    C 10.3 mm
    D 18 mm
    E 8 mm
    F 48 mm
    G 12 mm

    Classifications
    ECl@ss 5.0 27270101
    ECl@ss 5.1.4 27270101
    ECl@ss 6.0 27270101
    ECl@ss 6.2 27270101
    ECl@ss 7.0 27270101
    ECl@ss 8.0 27270101
    ECl@ss 8.1 27270101
    ECl@ss 9.0 27270101
    ECl@ss 10.0 27270101
    ECl@ss 11.0 27270101
    ETIM 5.0 EC002714
    ETIM 6.0 EC002714
    ETIM 7.0 EC002714
    ETIM 8.0 EC002714
    UNSPSC 16.0901 39122230
