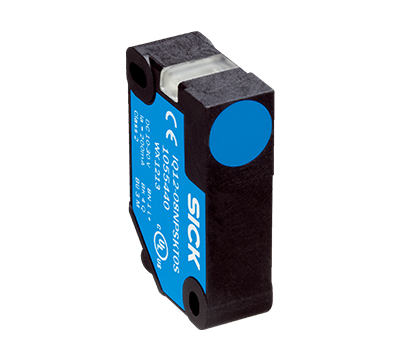

    Inductive proximity sensors SICK IQB

    Type:IQ12-08NPSKT0S
    Part no.:1055440
    add to cart Inquiry Now
    Features
    Housing Rectangular
    Dimensions (W x H x D) 12 mm x 40 mm x 26 mm
    Sensing range Sn 8 mm
    Safe sensing range Sa 6.48 mm
    Installation type Non-flush
    Switching frequency 2,000 Hz
    Connection type Connector M8, 3-pin
    Switching output PNP
    Output function NO
    Electrical wiring DC 3-wire
    Enclosure rating IP68 1)
    • 1) According to EN 60529.
    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC
    Ripple ≤ 10 % 1)
    Voltage drop ≤ 3 V 2)
    Time delay before availability ≤ 100 ms
    Hysteresis 5 % ... 15 %
    Reproducibility

    ≤ 2 % 3)

    4)
    Temperature drift (of Sr) ± 10 %
    EMC According to EN 60947-5-2
    Continuous current Ia ≤ 200 mA
    Short-circuit protection ✔
    Reverse polarity protection ✔
    Power-up pulse protection ✔
    Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
    Ambient operating temperature –25 °C ... +75 °C
    Housing material Plastic, VISTAL®
    Sensing face material Plastic, VISTAL®
    Tightening torque, max. ≤ 1 Nm
    • 1) Of VS.
    • 2) At Ia max.
    • 3) Ub and Ta constant.
    • 4) Of Sr.
    Reduction factors​​​​​​​
    Note The values are reference values which may vary
    Stainless steel (V2A, 304) 0.7
    Aluminum (Al) 0.5
    Copper (Cu) 0.4
    Brass (Br) 0.5

    Installation note
    Remark Associated graphic see "Installation"
    A 10 mm
    B 36 mm
    C 12 mm
    D 24 mm
    E 16 mm
    F 64 mm
    G 16 mm

    Classifications
    ECl@ss 5.0 27270101
    ECl@ss 5.1.4 27270101
    ECl@ss 6.0 27270101
    ECl@ss 6.2 27270101
    ECl@ss 7.0 27270101
    ECl@ss 8.0 27270101
    ECl@ss 8.1 27270101
    ECl@ss 9.0 27270101
    ECl@ss 10.0 27270101
    ECl@ss 11.0 27270101
    ETIM 5.0 EC002714
    ETIM 6.0 EC002714
    ETIM 7.0 EC002714
    ETIM 8.0 EC002714
    UNSPSC 16.0901 39122230
