    Sensor

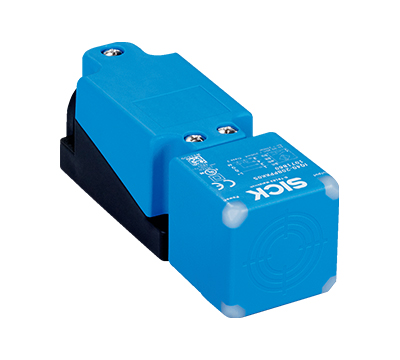

    Inductive proximity sensors SICK IQG

    Type:IQ40-20BPOKK0S
    Part no.:1071845
    add to cart Inquiry Now
    Features
    Housing Rectangular
    Housing Standard design
    Dimensions (W x H x D) 40 mm x 40 mm x 118 mm
    Sensing range Sn 20 mm
    Safe sensing range Sa 16.2 mm
    Installation type Flush
    Switching frequency 150 Hz
    Connection type Cable gland
    Switching output PNP
    Output function NC
    Electrical wiring DC 3-wire
    Enclosure rating IP67, IP68, IP69K
    Special applications Difficult application conditions

    Mechanics/electronics


    Supply voltage 10 V DC ... 30 V DC
    Ripple ≤ 10 Vpp 1)
    Voltage drop ≤ 2 V
    Time delay before availability ≤ 50 ms
    Hysteresis 3 % ... 15 % 2)
    Reproducibility ≤ 2 %
    Temperature drift (of Sr) ± 10 %
    Continuous current Ia ≤ 200 mA
    Cable gland clamping area M20 1.5
    Wire size ≤ 2.5 mm²
    Short-circuit protection ✔
    Reverse polarity protection ✔
    Power-up pulse protection ✔
    Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
    Ambient operating temperature –25 °C ... +85 °C
    Ambient temperature, storage –40 °C ... +85 °C
    Housing material Plastic, PA 66
    Sensing face material Plastic, PA 66
    Tightening torque, max. 1.8 Nm
    Protection class II 3)
    UL File No. E348498
    • 1) Of Ub.
    • 2) Of Sr.
    • 3) Reference voltage: 50 V DC.
    Safety-related parameters
    MTTFD 1,406 years
    DCavg 0 %

    Reduction factors
    Note The values are reference values which may vary
    Stainless steel (V2A, 304) Approx. 0.71
    Aluminum (Al) Approx. 0.3
    Copper (Cu) Approx. 0.25
    Brass (Br) Approx. 0.36

    Installation note
    Remark Associated graphic see "Installation"
    A 0 mm
    B 40 mm
    C 40 mm
    D 60 mm
    E 0 mm
    F 70 mm

    Classifications
    ECl@ss 5.0 27270101
    ECl@ss 5.1.4 27270101
    ECl@ss 6.0 27270101
    ECl@ss 6.2 27270101
    ECl@ss 7.0 27270101
    ECl@ss 8.0 27270101
    ECl@ss 8.1 27270101
    ECl@ss 9.0 27270101
    ECl@ss 10.0 27270101
    ECl@ss 11.0 27270101
    ETIM 5.0 EC002714
    ETIM 6.0 EC002714
    ETIM 7.0 EC002714
    ETIM 8.0 EC002714
    UNSPSC 16.0901 39122230
