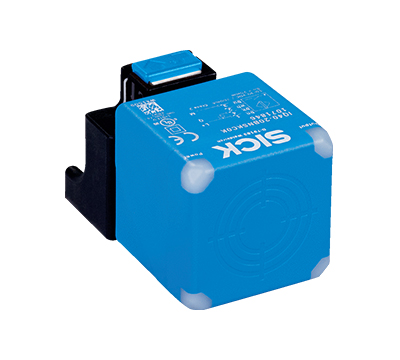

    Inductive proximity sensors SICK IQG

    Type:IQ40-40NPPKC0K
    Part no.:1071552
    Features
    Housing Rectangular
    Housing Short-body
    Dimensions (W x H x D) 40 mm x 40 mm x 66 mm
    Sensing range Sn 40 mm
    Safe sensing range Sa 32.4 mm
    Installation type Non-flush
    Switching frequency 100 Hz
    Connection type Male connector M12, 4-pin
    Switching output PNP
    Output function Complementary
    Electrical wiring DC 4-wire
    Enclosure rating IP67, IP68, IP69K
    Special applications Difficult application conditions

    Mechanics/electronics


    Supply voltage 10 V DC ... 30 V DC
    Ripple ≤ 10 Vpp 1)
    Voltage drop ≤ 2 V
    Time delay before availability ≤ 200 ms
    Hysteresis 3 % ... 15 % 2)
    Reproducibility ≤ 6 %
    Temperature drift (of Sr) ± 10 %
    Continuous current Ia ≤ 200 mA
    Short-circuit protection
    Reverse polarity protection
    Power-up pulse protection
    Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
    Ambient operating temperature –25 °C ... +85 °C
    Ambient temperature, storage –40 °C ... +85 °C
    Housing material Plastic, PA 66
    Sensing face material Plastic, PA 66
    Tightening torque, max. 1.8 Nm
    Items supplied Push-lock mounting system (1x)
    Protection class II 3)
    UL File No. E348498
    • 1) Of Ub.
    • 2) Of Sr.
    • 3) Reference voltage: 50 V DC.
    Safety-related parameters
    MTTFD 1,406 years
    DCavg 0 %

    Reduction factors
    Note The values are reference values which may vary
    Stainless steel (V2A, 304) Approx. 0.8
    Aluminum (Al) Approx. 0.34
    Copper (Cu) Approx. 0.27
    Brass (Br) Approx. 0.38

    Installation note
    Remark Associated graphic see "Installation"
    A 42 mm
    B 150 mm
    C 40 mm
    D 120 mm
    E 40 mm
    F 150 mm

    Classifications
    ECl@ss 5.0 27270101
    ECl@ss 5.1.4 27270101
    ECl@ss 6.0 27270101
    ECl@ss 6.2 27270101
    ECl@ss 7.0 27270101
    ECl@ss 8.0 27270101
    ECl@ss 8.1 27270101
    ECl@ss 9.0 27270101
    ECl@ss 10.0 27270101
    ECl@ss 11.0 27270101
    ETIM 5.0 EC002714
    ETIM 6.0 EC002714
    ETIM 7.0 EC002714
    ETIM 8.0 EC002714
    UNSPSC 16.0901 39122230
