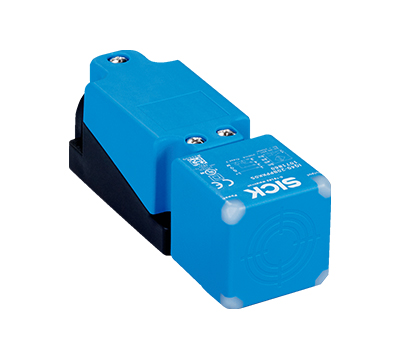

Inductive proximity sensors SICK IQG
Type:IQ40-40NPPKK0S
Part no.:1071863
Features
| Housing |
Rectangular |
| Housing |
Standard design |
| Dimensions (W x H x D) |
40 mm x 40 mm x 118 mm |
| Sensing range Sn |
40 mm |
| Safe sensing range Sa |
32.4 mm |
| Installation type |
Non-flush |
| Switching frequency |
100 Hz |
| Connection type |
Cable gland |
| Switching output |
PNP |
| Output function |
Complementary |
| Electrical wiring |
DC 4-wire |
| Enclosure rating |
IP67, IP68, IP69K |
| Special applications |
Difficult application conditions |
Mechanics/electronics
| Supply voltage |
10 V DC ... 30 V DC |
| Ripple |
≤ 10 Vpp 1) |
| Voltage drop |
≤ 2 V |
| Time delay before availability |
≤ 200 ms |
| Hysteresis |
3 % ... 15 % 2) |
| Reproducibility |
≤ 6 % |
| Temperature drift (of Sr) |
± 10 % |
| Continuous current Ia |
≤ 200 mA |
| Cable gland clamping area |
M20 1.5 |
| Wire size |
≤ 2.5 mm² |
| Short-circuit protection |
✔ |
| Reverse polarity protection |
✔ |
| Power-up pulse protection |
✔ |
| Shock and vibration resistance |
30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature |
–25 °C ... +85 °C |
| Ambient temperature, storage |
–40 °C ... +85 °C |
| Housing material |
Plastic, PA 66 |
| Sensing face material |
Plastic, PA 66 |
| Tightening torque, max. |
1.8 Nm |
| Protection class |
II 3) |
| UL File No. |
E348498 |
Safety-related parameters
| MTTFD |
1,406 years |
| DCavg |
0 % |
Reduction factors
| Note |
The values are reference values which may vary |
| Stainless steel (V2A, 304) |
Approx. 0.8 |
| Aluminum (Al) |
Approx. 0.34 |
| Copper (Cu) |
Approx. 0.27 |
| Brass (Br) |
Approx. 0.38 |
Installation note
| Remark |
Associated graphic see "Installation" |
| A |
42 mm |
| B |
150 mm |
| C |
40 mm |
| D |
120 mm |
| E |
40 mm |
| F |
150 mm |
Classifications
| ECl@ss 5.0 |
27270101 |
| ECl@ss 5.1.4 |
27270101 |
| ECl@ss 6.0 |
27270101 |
| ECl@ss 6.2 |
27270101 |
| ECl@ss 7.0 |
27270101 |
| ECl@ss 8.0 |
27270101 |
| ECl@ss 8.1 |
27270101 |
| ECl@ss 9.0 |
27270101 |
| ECl@ss 10.0 |
27270101 |
| ECl@ss 11.0 |
27270101 |
| ETIM 5.0 |
EC002714 |
| ETIM 6.0 |
EC002714 |
| ETIM 7.0 |
EC002714 |
| ETIM 8.0 |
EC002714 |
| UNSPSC 16.0901 |
39122230 |
