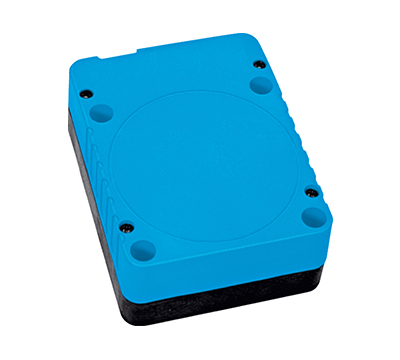

Inductive proximity sensors SICK IQL
Type:IQ80-60NPP-KK0
Part no.:7900227
Features
| Housing |
Rectangular |
| Housing |
Standard |
| Dimensions (W x H x D) |
80 mm x 105 mm x 40 mm |
| Sensing range Sn |
60 mm |
| Safe sensing range Sa |
48.6 mm |
| Installation type |
Non-flush |
| Switching frequency |
100 Hz |
| Connection type |
Terminal connection with M20 gland |
| Switching output |
PNP |
| Output function |
NC or NO |
| Output characteristic |
Wire configurable |
| Electrical wiring |
DC 3-wire |
| Enclosure rating |
IP65 1) |
Mechanics/electronics
| Supply voltage |
10 V DC ... 36 V DC |
| Voltage drop |
≤ 2.5 V 1) |
| Hysteresis |
1 % ... 15 % |
| Temperature drift (of Sr) |
± 10 % |
| EMC |
According to EN 60947-5-2 |
| Continuous current Ia |
≤ 250 mA |
| Off-state current |
≤ 0.5 mA |
| Cable gland clamping area |
M20 1.5 |
| Wire size |
≤ 2.5 mm² |
| Short-circuit protection |
✔ |
| Reverse polarity protection |
✔ |
| Power-up pulse protection |
✔ |
| Shock and vibration resistance |
30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature |
–25 °C ... +80 °C |
| Housing material |
Plastic, PPE |
| Sensing face material |
Plastic, PPE |
Safety-related parameters
| MTTFD |
2,554 years |
| DCavg |
0 % |
Reduction factors
| Note |
The values are reference values which may vary |
| Stainless steel (V2A, 304) |
Approx. 0.7 |
| Aluminum (Al) |
Approx. 0.3 |
| Copper (Cu) |
Approx. 0.2 |
| Brass (Br) |
Approx. 0.4 |
Installation note
| Remark |
Associated graphic see "Installation" |
| A |
160 mm |
| B |
160 mm |
| C |
80 mm |
| D |
150 mm |
| E |
40 mm |
| F |
480 mm |
Classifications
| ECl@ss 5.0 |
27270101 |
| ECl@ss 5.1.4 |
27270101 |
| ECl@ss 6.0 |
27270101 |
| ECl@ss 6.2 |
27270101 |
| ECl@ss 7.0 |
27270101 |
| ECl@ss 8.0 |
27270101 |
| ECl@ss 8.1 |
27270101 |
| ECl@ss 9.0 |
27270101 |
| ECl@ss 10.0 |
27270101 |
| ECl@ss 11.0 |
27270101 |
| ETIM 5.0 |
EC002714 |
| ETIM 6.0 |
EC002714 |
| ETIM 7.0 |
EC002714 |
| ETIM 8.0 |
EC002714 |
| UNSPSC 16.0901 |
39122230 |
