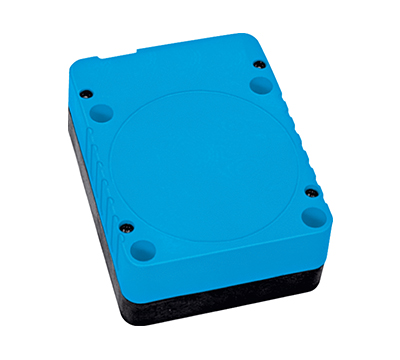

Sensor
Features
| Housing | Rectangular |
| Housing | Standard |
| Dimensions (W x H x D) | 80 mm x 105 mm x 40 mm |
| Sensing range Sn | 60 mm |
| Safe sensing range Sa | 48.6 mm |
| Installation type | Non-flush |
| Switching frequency | 4 Hz |
| Connection type | Terminal connection with M20 gland |
| Switching output | PNP / NPN |
| Output function | NC or NO |
| Output characteristic | Wire configurable |
| Electrical wiring | AC/DC 2-wire |
| Enclosure rating | IP65 1) |
- 1) According to EN 60529.
Mechanics/electronics
| Supply voltage | 20 V AC/DC ... 250 V AC/DC |
| Voltage drop | ≤ 6.5 V (AC) |
| Hysteresis | 1 % ... 15 % |
| Reproducibility | ≤ 10 % 1) 2) 3) |
| Temperature drift (of Sr) | ± 10 % |
| EMC |
As per EN 55011, class B According to EN 60947-5-2 |
| Continuous current Ia |
≤ 350 mA 4) ≤ 250 mA 5) ≤ 100 mA 6) |
| Off-state current | ≤ 2.5 mA (AC 250 V) |
| Minimum load current | > 5 mA |
| Short-time withstand current | 2.2 A 7) |
| Cable gland clamping area | M20 1.5 |
| Wire size | ≤ 2.5 mm² |
| Short-circuit protection | – 8) |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +80 °C |
| Housing material | Plastic, PPE |
| Sensing face material | Plastic, PPE |
| Protection class | II |
| Rated insulation voltage Ui | 250 V AC |
| Usage category |
AC-140 9) DC-13 10) |
| Contamination rating | 3 |
| Rated impulse withstand voltage | 4 kV |
- 1) Ub and Ta constant.
- 2) Of Sr.
- 3) Repeatability (Ta not constant).
- 4) AC (+50 °C).
- 5) AC (+80 °C).
- 6) DC.
- 7) 20 ms / 0.5 Hz.
- 8) Miniature fuse to IEC 60217-2 Sheet 1, ≤ 2 A (quick-blow).
- 9) Control of small electromagnetic loads with holding currents < 200 mA.
- 10) Control of solenoids.
Reduction factors
Installation note
| Note | The values are reference values which may vary |
| Stainless steel (V2A, 304) | Approx. 0.7 |
| Aluminum (Al) | Approx. 0.3 |
| Copper (Cu) | Approx. 0.2 |
| Brass (Br) | Approx. 0.4 |
Installation note
| Remark | Associated graphic see "Installation" |
| A | 160 mm |
| B | 160 mm |
| C | 80 mm |
| D | 150 mm |
| E | 40 mm |
| F | 480 mm |
Classifications
| ECl@ss 5.0 | 27270101 |
| ECl@ss 5.1.4 | 27270101 |
| ECl@ss 6.0 | 27270101 |
| ECl@ss 6.2 | 27270101 |
| ECl@ss 7.0 | 27270101 |
| ECl@ss 8.0 | 27270101 |
| ECl@ss 8.1 | 27270101 |
| ECl@ss 9.0 | 27270101 |
| ECl@ss 10.0 | 27270101 |
| ECl@ss 11.0 | 27270101 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
