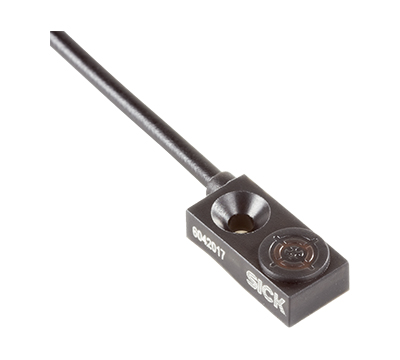

    Inductive proximity sensors SICK IQM

    Type:IQ04-1B5PSKRDS
    Part no.:6063881
    add to cart Inquiry Now
    Features
    Housing Rectangular
    Dimensions (W x H x D) 8 mm x 16 mm x 4 mm
    Sensing range Sn 1.5 mm
    Safe sensing range Sa 1.215 mm
    Installation type Flush
    Switching frequency 600 Hz
    Connection type Cable with connector M8, 3-pin, with knurled nuts, 0.3 m
    Switching output PNP
    Output function NO
    Electrical wiring DC 3-wire
    Enclosure rating IP67 1)
    • 1) According to EN 60529.
    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC
    Ripple ≤ 10 % 1)
    Voltage drop < 1.5 V 2)
    Time delay before availability ≤ 10 ms
    Hysteresis 1 % ... 15 %
    Reproducibility ± 1 % 3) 4)
    Temperature drift (of Sr) ± 10 %
    EMC According to EN 60947-5-2
    Continuous current Ia ≤ 100 mA
    Cable material PVC
    Conductor size 0.09 mm²
    Cable diameter Ø 2.5 mm
    Short-circuit protection ✔
    Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
    Ambient operating temperature –25 °C ... +70 °C
    Housing material Plastic, PA6
    Sensing face material Plastic, PA6
    Tightening torque, max. ≤ 0.06 Nm
    • 1) Of VS.
    • 2) At Ia max.
    • 3) Ub and Ta constant.
    • 4) Of Sr.
    Safety-related parameters​​​​​​​
    MTTFD 1,328 years
    TM (mission time) 20 years

    Reduction factors
    MTTFD 1,328 years
    TM (mission time) 20 years

    Installation note
    Remark Associated graphic see "Installation"
    A 0 mm
    B 16 mm
    C 8 mm
    D 4.5 mm
    E 0 mm
    F 24 mm

    Classifications
    ECl@ss 5.0 27270101
    ECl@ss 5.1.4 27270101
    ECl@ss 6.0 27270101
    ECl@ss 6.2 27270101
    ECl@ss 7.0 27270101
    ECl@ss 8.0 27270101
    ECl@ss 8.1 27270101
    ECl@ss 9.0 27270101
    ECl@ss 10.0 27270101
    ECl@ss 11.0 27270101
    ETIM 5.0 EC002714
    ETIM 6.0 EC002714
    ETIM 7.0 EC002714
    ETIM 8.0 EC002714
    UNSPSC 16.0901 39122230
