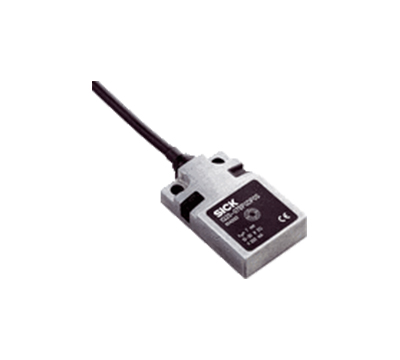

    Inductive proximity sensors SICK IQV

    Type:IQ20-07BNSDP0S
    Part no.:6042044
    add to cart Inquiry Now
    Features
    Housing Rectangular
    Dimensions (W x H x D) 20 mm x 32 mm x 8 mm
    Sensing range Sn 7 mm
    Safe sensing range Sa 5.67 mm
    Installation type Flush
    Switching frequency 150 Hz
    Connection type Cable with connector M8, 3-pin, 0.3 m
    Switching output NPN
    Output function NO
    Electrical wiring DC 3-wire
    Enclosure rating IP67 1)
    • 1) According to EN 60529.
    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC
    Ripple ≤ 10 % 1)
    Voltage drop < 2.5 V 2)
    Time delay before availability ≤ 20 ms
    Hysteresis 1 % ... 15 %
    Reproducibility ± 5 % 3) 4)
    Temperature drift (of Sr) ± 10 %
    EMC According to EN 60947-5-2
    Continuous current Ia ≤ 200 mA
    Cable material PUR
    Short-circuit protection ✔
    Reverse polarity protection ✔
    Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
    Ambient operating temperature –25 °C ... +70 °C
    Housing material Zinc diecast, GD Zn
    Sensing face material Plastic, PA12
    • 1) Of VS.
    • 2) At Ia max.
    • 3) Ub and Ta constant.
    • 4) Of Sr.

    Safety-related parameters​​​​​​​
    MTTFD 1,080 years
    TM (mission time) 20 years

    Reduction factors
    Note The values are reference values which may vary
    Stainless steel (V2A, 304) Approx. 0.7
    Aluminum (Al) Approx. 0.4
    Copper (Cu) Approx. 0.3
    Brass (Br) Approx. 0.4

    Installation note
    Remark Associated graphic see "Installation"
    A 0 mm
    B 20 mm
    C 20 mm
    D 21 mm
    E 0 mm
    F 60 mm

    Classifications
    ECl@ss 5.0 27270101
    ECl@ss 5.1.4 27270101
    ECl@ss 6.0 27270101
    ECl@ss 6.2 27270101
    ECl@ss 7.0 27270101
    ECl@ss 8.0 27270101
    ECl@ss 8.1 27270101
    ECl@ss 9.0 27270101
    ECl@ss 10.0 27270101
    ECl@ss 11.0 27270101
    ETIM 5.0 EC002714
    ETIM 6.0 EC002714
    ETIM 7.0 EC002714
    ETIM 8.0 EC002714
    UNSPSC 16.0901 39122230
