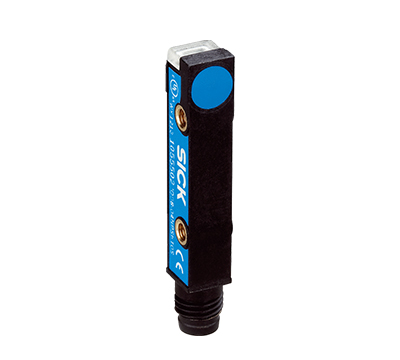

    Inductive proximity sensors SICK IQY

    Type:IQ08-04NPSKT0S
    Part no.:1055502
    Features
    Housing Rectangular
    Dimensions (W x H x D) 8 mm x 40 mm x 8 mm
    Sensing range Sn 4 mm
    Safe sensing range Sa 3.24 mm
    Installation type Non-flush
    Switching frequency 2,000 Hz
    Connection type Connector M8, 3-pin
    Switching output PNP
    Output function NO
    Electrical wiring DC 3-wire
    Enclosure rating IP67, IP68 1)
    • 1) According to EN 60529.
    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC
    Ripple ≤ 10 % 1)
    Voltage drop ≤ 2 V 2)
    Time delay before availability ≤ 100 ms
    Hysteresis 5 % ... 15 %
    Reproducibility

    ≤ 2 % 3)

    4)

    Temperature drift (of Sr) ± 10 %
    EMC According to EN 60947-5-2
    Continuous current Ia ≤ 200 mA
    Short-circuit protection
    Reverse polarity protection
    Power-up pulse protection
    Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
    Ambient operating temperature –25 °C ... +75 °C
    Housing material Plastic, VISTAL®
    Sensing face material Plastic, VISTAL®
    Tightening torque, max. ≤ 1.5 Nm
    UL File No. NRKH.E348498
    • 1) Of VS.
    • 2) At Ia max.
    • 3) Ub and Ta constant.
    • 4) Of Sr.
    Reduction factors​​​​​​​
    Note The values are reference values which may vary
    Stainless steel (V2A, 304) Approx. 0.7
    Aluminum (Al) Approx. 0.5
    Copper (Cu) Approx. 0.4
    Brass (Br) Approx. 0.5

    Installation note
    Remark Associated graphic see "Installation"
    A 4 mm
    B 24 mm
    C 8 mm
    D 12 mm
    E 20 mm
    F 32 mm
    G 8 mm

    Classifications
    ECl@ss 5.0 27270101
    ECl@ss 5.1.4 27270101
    ECl@ss 6.0 27270101
    ECl@ss 6.2 27270101
    ECl@ss 7.0 27270101
    ECl@ss 8.0 27270101
    ECl@ss 8.1 27270101
    ECl@ss 9.0 27270101
    ECl@ss 10.0 27270101
    ECl@ss 11.0 27270101
    ETIM 5.0 EC002714
    ETIM 6.0 EC002714
    ETIM 7.0 EC002714
    ETIM 8.0 EC002714
    UNSPSC 16.0901 39122230
