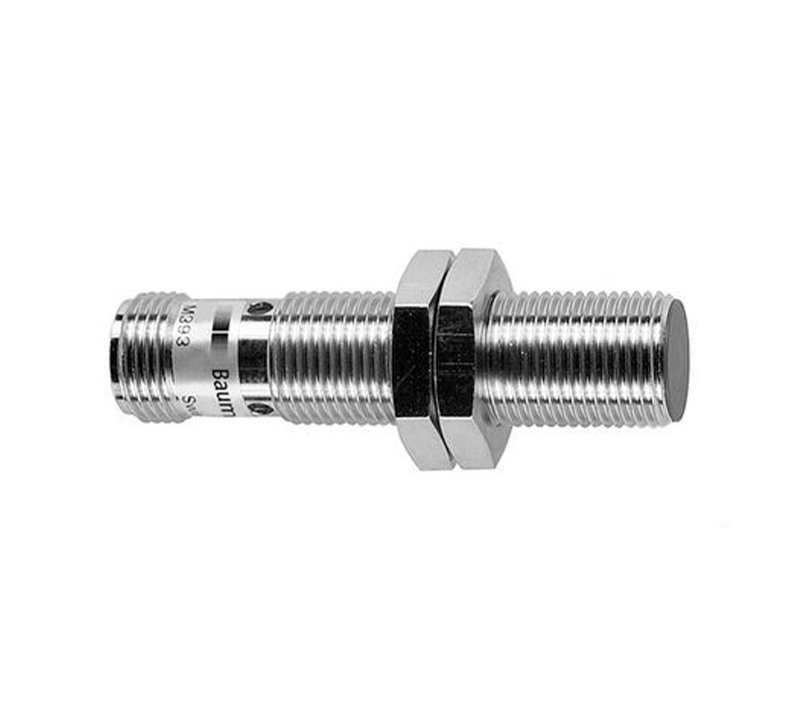

Inductive proximity switch Baumer IFRM 12P1701/S14L
| general data |
| mounting type |
flush |
| nominal sensing distance Sn |
4 mm |
| hysteresis |
3 ... 20 % of Sr |
| output indicator |
3 port LED red |
| electrical data |
| switching frequency |
< 2 kHz |
| voltage supply range +Vs |
10 ... 30 VDC |
| current consumption max. (no load) |
10 mA |
| output circuit |
PNP make function (NO) |
| voltage drop Vd |
< 2 VDC |
| output current |
< 200 mA |
| short circuit protection |
yes |
| reverse polarity protection |
yes |
| mechanical data |
| type |
cylindrical threaded |
| material (sensing face) |
PBT |
| housing material |
brass nickel plated |
| dimension |
12 mm |
| housing length |
50 mm |
| connection types |
connector M12 |
| ambient conditions |
| operating temperature |
-25 ... +75 °C |
| protection class |
IP 67 |
