Sensor

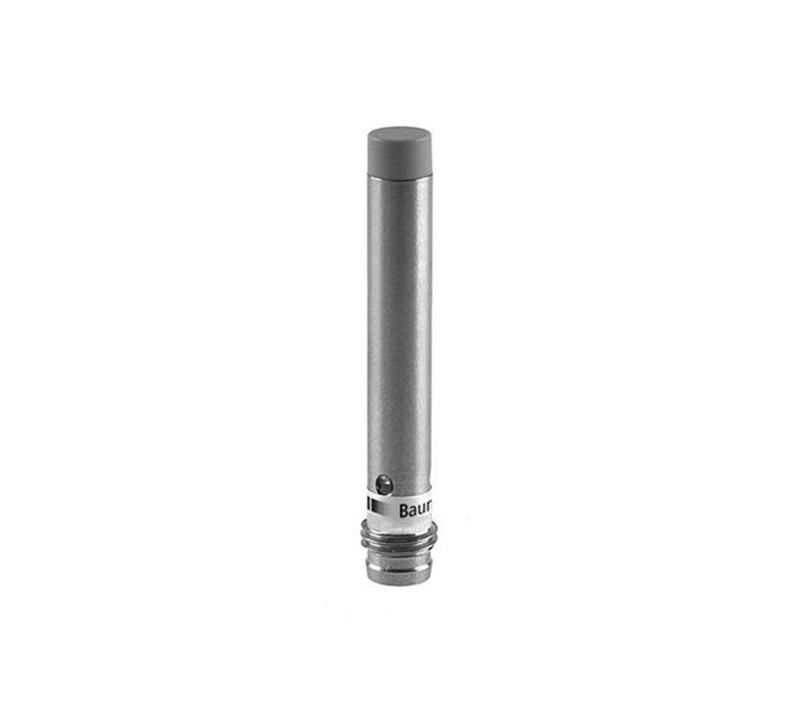

inductive proximity switch Baumer P06S-N46.PO1Z.7SL
| General Data |
| Installation |
Non-flush |
| Special Version |
Increased switching distance (GammaProx) |
| Rated Switching Distance Sn |
6 mm |
| Temperature Drift |
± 10% (0 ... +60 °C), ± 15% (-25 ... +75 °C) |
| Switching Hysteresis |
3 ... 20% of Sr |
| Switching Status Display |
3-point LED red |
| Correction Factor (typ.) |
Construction Steel 100%, Stainless Steel 80%, Aluminum 50% |
| Electrical Data |
| Switching Frequency |
< 400 Hz |
| Operating Voltage Range +Vs |
6 ... 36 VDC |
| Current Consumption Max. (no load) |
12 mA |
| Output Circuit |
PNP Normally Open (NO) |
| Voltage Drop Vd |
< 2 VDC |
| Output Current |
< 100 mA |
| Short Circuit Proof |
Yes |
| Reverse Polarity Protection |
Yes |
| Mechanical Data |
| Design |
Cylindrical, smooth |
| Material (Active Face) |
PBT |
| Housing Material |
Chrome-Nickel Steel |
| Size |
6.5 mm |
| Housing Length |
46 mm |
| Connection Type |
Connector M8 |
| Ambient Conditions |
| Operating Temperature |
-25 ... +75 °C |
| Protection Class |
IP 67 |
