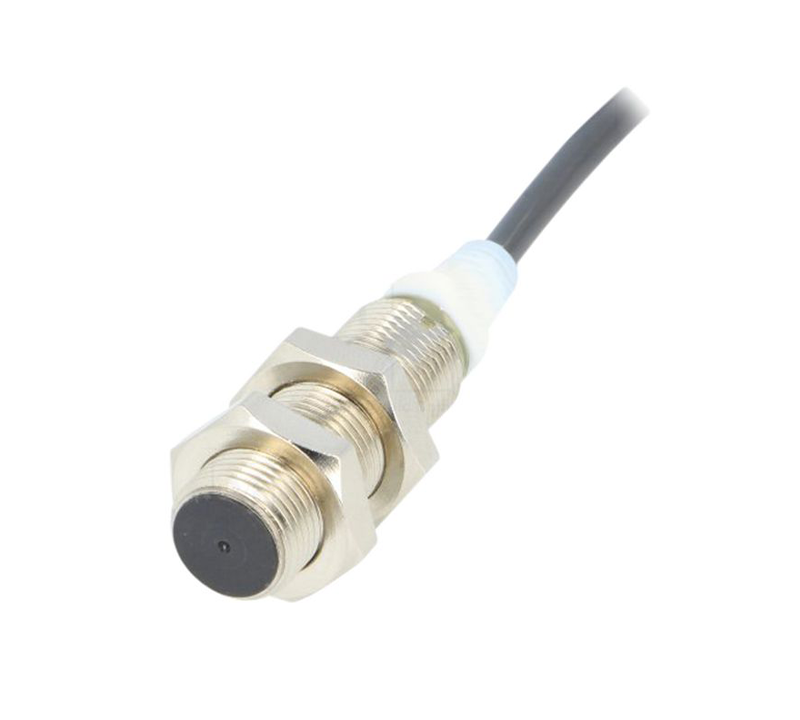

Inductive Sensor Make Contact Omron E2A-M12KS04-WP-C1 2M
Proximity sensor, inductive, nickel-brass, short body, M12, shielded, 4 mm, DC, 3-wire, NPN NO, 2 m cable
| Type of sensor | inductive |
| Output configuration | NPN / NO |
| Range | 0...4mm |
| Switch housing | M12 |
| Connection | lead 2m |
| IP rating | IP67 |
| Max. operating current | 0.2A |
| Operating temperature | -40...70ºC |
| Kind of forehead | embedded |
| Body material | brass |
| Switching frequency max | 1kHz |
| Overall length | 50.3mm |
| Body plating | nickel |
