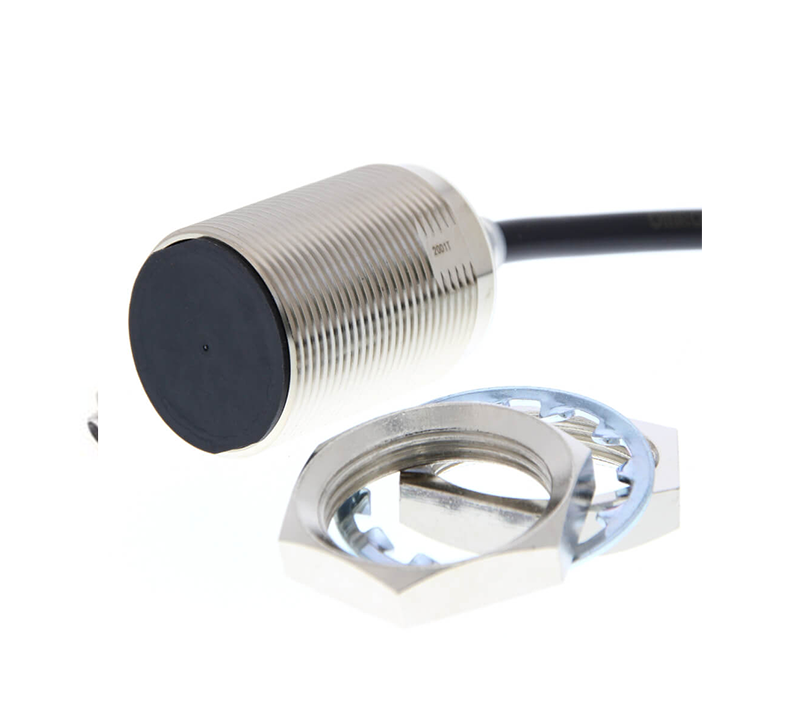

Inductive Sensor Make Contact Omron E2E-X22B1T30 2M OMS
Inductive Proximity Sensor, Nickel Brass, Short Body, M30, Shielded, 22mm, DC, 3 Wire, PNP NO, IO-Link COM3, 2m Prewired Cable
| Size | M30 |
| Mounting type | Quasi-flush |
| Sensing distance | 22 mm |
| Overall length of sensor | 60.3 mm |
| Thread length | 38 mm |
| Material housing | Brass, nickel plated |
| Output type | IO-Link, PNP |
| Operation mode | NO |
| Connection method | Cable |
| Cable specifications | PVC (oil-resistant) |
| Cable length | 2 m |
| IO-Link function | V |
| IO-Link baud rate | COM3 (230.4 kbps) |
| Degree of protection (IP) | IP67/IP67G/IP69K |
