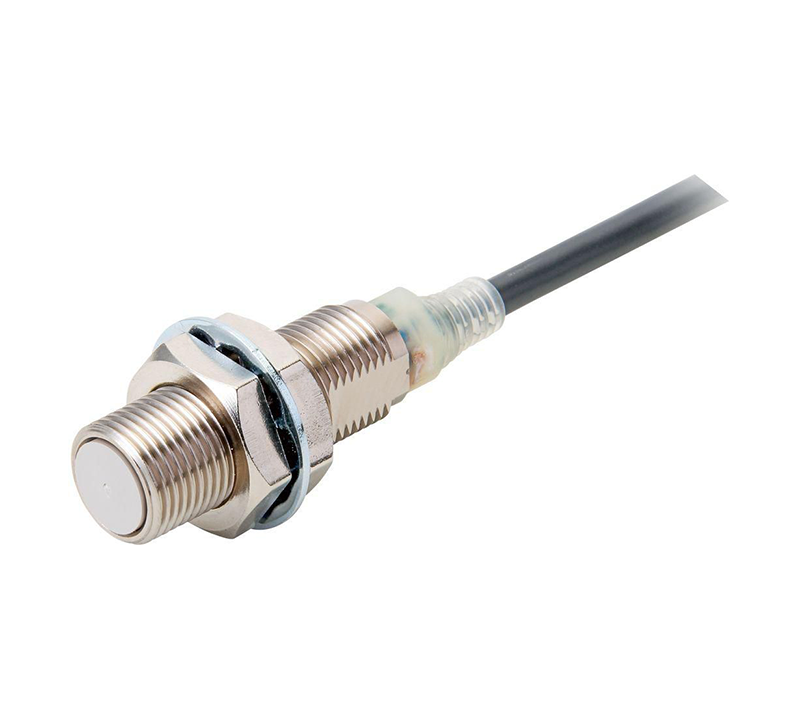

Inductive Sensor Make Contact Omron E2E-X3D1-N 5M OMS
Proximity sensor, inductive, M12, shielded, 3 mm, DC, 2-wire, NO, 5 m cable
| Primary brand | OMRON |
|---|---|
| Main function | Sensor (Proximity; inductive) |
| Product series / family name | E2E series |
| Functions | Inductive proximity sensor / switch |
| Design | shielded / embeddable new model oil-resistant |
| Supply voltage (DC) | 10Vdc-30Vdc (12Vdc-24Vdc nom.) |
| Sensing distance | 3mm 0mm...4.8mm (setting distance) |
| Frequency | 1000Hz max. switching |
| Shape | M12 threaded cylindrical / barrel body |
| Diameter | 12mm housing |
| Thread size | M12 |
| Connection type | Pre-wired with 5m cable terminated with bare end flying leads |
| Protection functions | Surge suppressor Load short-circuit protection |
| Mounting mode | flush |
| Operating mode | NO output |
| Digital outputs | 1 x digital output (DC 2-wire; polarized) |
| Degree of protection | IP67 |
| Dimensions | 12mm housing |
| Material | Nickel-plated brass housing Thermoplastic P.B.T. polymer sensing surface PVC cable |
| Ambient air temperature for operation | -25...+70 °C |
| Current consumption | 0.003A-0.1A |
| Order code / Manufacturer SKU | E2E-X3D1-N 5M OMS |
| Manufacturer product status | Commercialized |
| Equivalent to | E2EX3D1N5M |
| Compliant with standard(s) | CE |
