Sensor

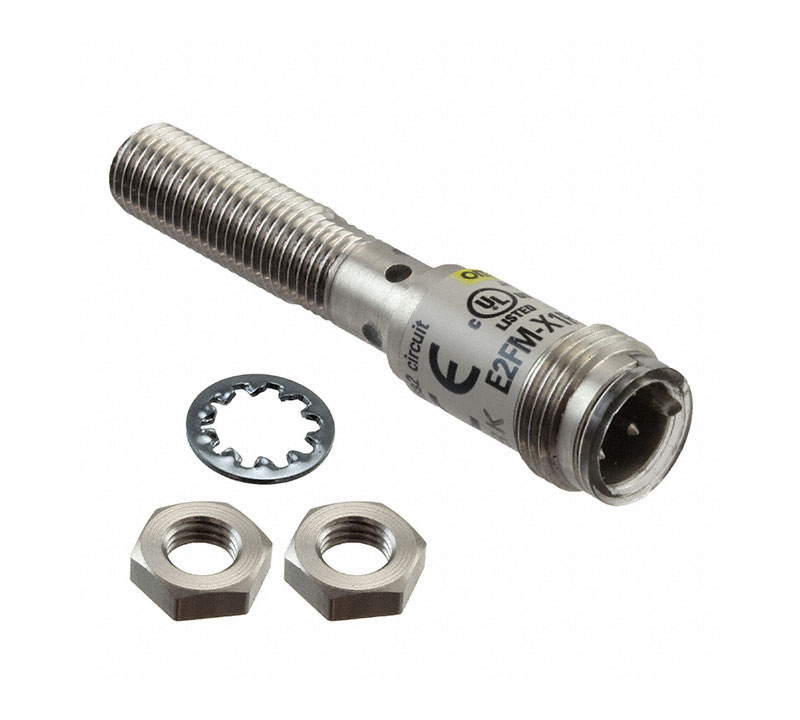

Inductive Sensor Make Contact Omron E2FM X1R5B1 M1
Proximity sensor, inductive, stainless steel face & body, long body, M8, shielded, 1.5mm, DC, 3-wire, PNP-NO, M12 plug-in
| Size | M8 |
| Mounting type | Flush |
| Sensing distance | 1.5 mm |
| Output type | PNP |
| Operation mode | NO |
| Connection method | Connector M12 |
| Material housing | Stainless steel |
| Cable specifications | - |
| Overall length of sensor | 53 mm |
| Thread length | 25 mm |
| Features | Metal sensing face |
| Polarity | V |
| Degree of protection (IP) | IP67 |
