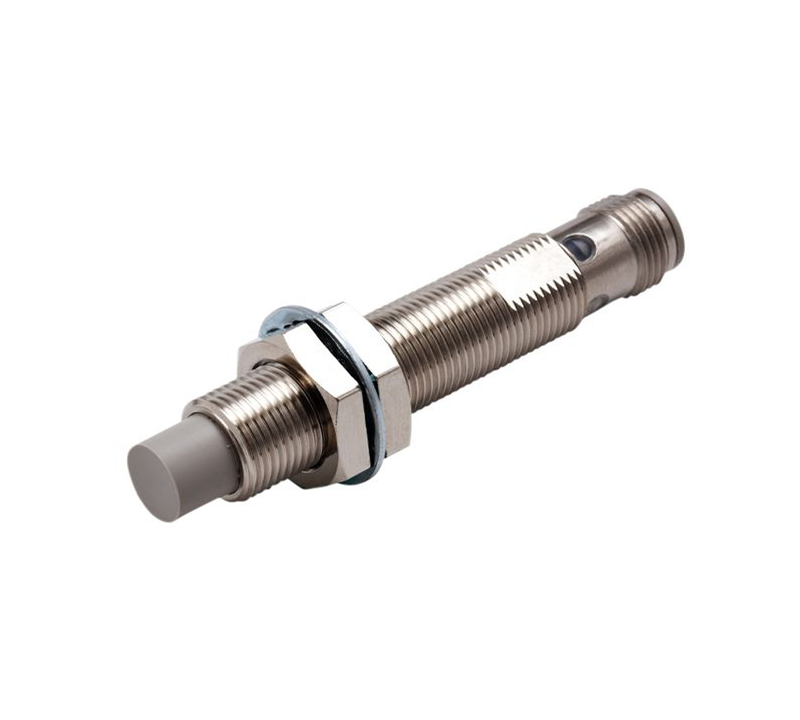

Inductive Sensor NPN Omron E2E-X8MC1L12-M1 OMS
Proximity sensor, inductive, nickel-brass, long body, M12, unshielded, 8 mm, DC, 3-wire, NPN NO, M12 connector
| Size | M12 |
| Mounting type | Non-flush |
| Sensing distance | 8 mm |
| Overall length of sensor | 70 mm |
| Thread length | 48 mm |
| Material housing | Brass, nickel plated |
| Output type | NPN |
| Operation mode | NO |
| Connection method | Connector M12 |
| Cable specifications | - |
| IO-Link function | X |
| IO-Link baud rate | N/A |
| Degree of protection (IP) | IP67/IP69K |
