Sensor

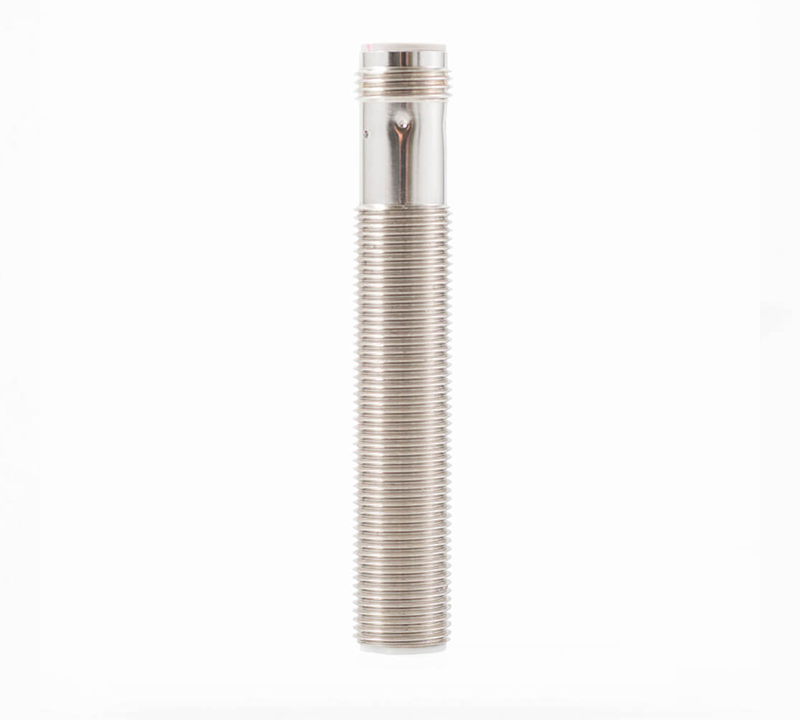

Inductive Sensor Omron E2B-M12LS04-M1-B1
Proximity sensor, LITE, inductive, nickel-brass, long body, M12, shielded, 4 mm, DC, 3-wire, PNP-NO, M12 plug-in
| Size | M12 |
| Mounting type | Quasi-flush |
| Sensing distance | 4 mm |
| Output type | PNP |
| Operation mode | NO |
| Connection method | Connector M12 |
| Material housing | Brass, nickel plated |
| Cable specifications | - |
| Overall length of sensor | 74 mm |
| Thread length | 54 mm |
| Degree of protection (IP) | IP67 |
