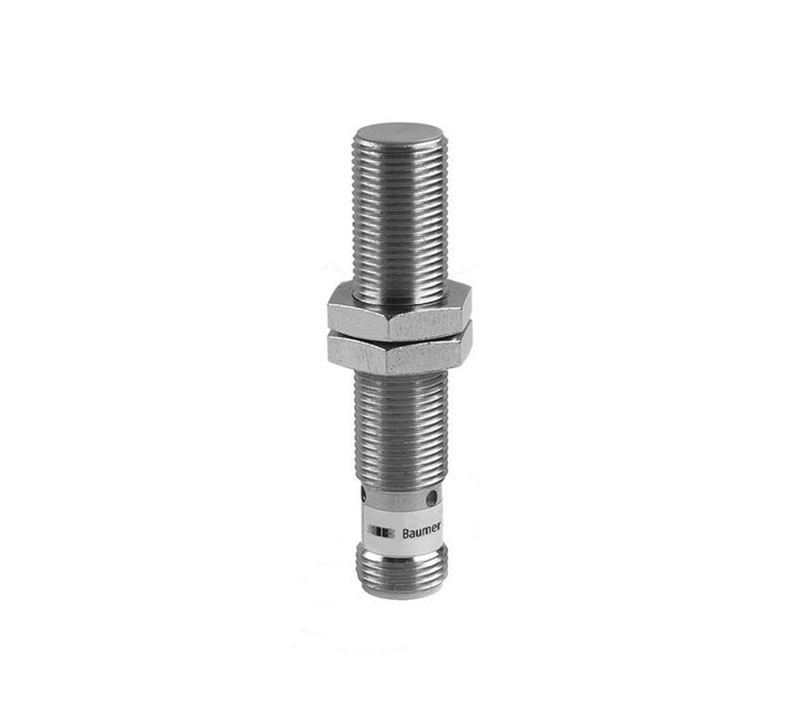

Sensor
| General Data | |
|---|---|
| Installation type | quasi flush |
| Special version | linearized |
| Measuring distance Sd | 0 ... 6 mm |
| Sensitivity | 2.67 mA/mm |
| Resolution | < 0.003 mm (static) < 0.005 mm (dynamic, S = 0 ... 4 mm) < 0.022 mm (dynamic, S = 0 ... 6 mm) |
| Repeatability | < 0.01 mm |
| Setting | Ext. Teach-in |
| Teach | 1-point analog, 2-point analog, factory reset |
| Linearity deviation | ± 25 μm (S = 0 ... 4 mm) ± 120 μm (S = 0 ... 6 mm) |
| Temperature drift | ± 2 % (Full Scale; S = 0 ... 4 mm) ± 5 % (Full Scale; S = 0 ... 6 mm) |
| Electrical Data | |
| Response time (factory characteristic) | < 1 ms |
| Operating voltage range +Vs | 8 ... 36 VDC |
| Current consumption max. (no load) | 15 mA |
| Output circuit | Current output |
| Output signal | 4 ... 20 mA |
| Load resistance | < 50 Ohm/V * Vs - 250 Ohm > 500 Ohm (Vs = 30 ... 36 VDC) |
| Short circuit protection | yes |
| Reverse polarity protection | yes |
| Mechanical Data | |
| Design | cylindrical with thread |
| Housing material | nickel-plated brass |
| Size | 12 mm |
| Housing length | 60 mm |
| Connection type | M12 connector |
| Max. tightening torque | 15 Nm (A: 10 Nm) |
| Environmental Conditions | |
| Operating temperature | -25 ... +75 °C (Vs = 8 ... 30 VDC) -25 ... +60 °C (Vs = 30 ... 36 VDC) |
| Protection class | IP 67 |
