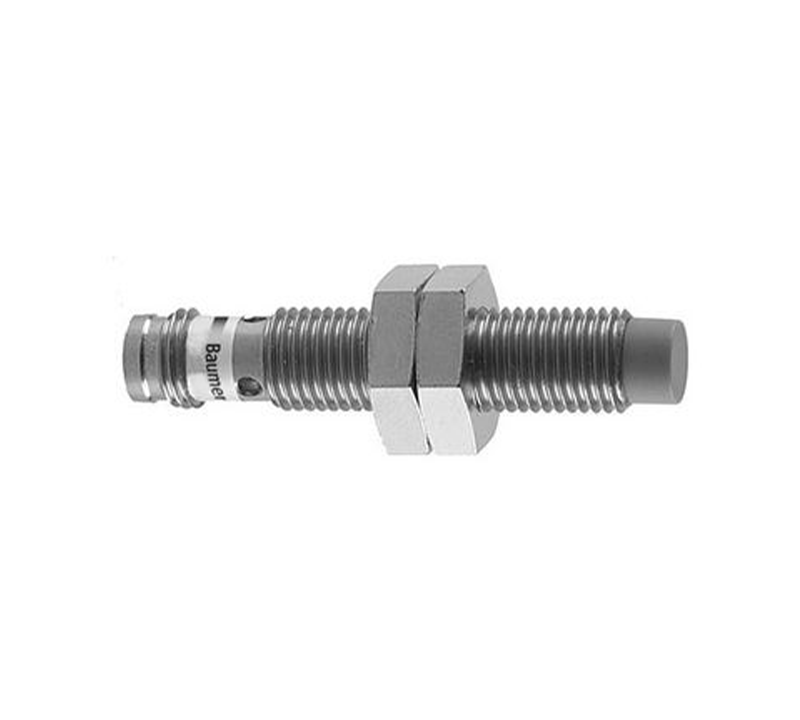

Sensor
| General Data | |
|---|---|
| Mounting | Not flush |
| Special Execution | Increased Switching Distance (GammaProx) |
| Nominal Sensing Distance Sn | 6 mm |
| Temperature Drift | ± 10% (0 ... +60 °C), ± 15% (-25 ... +75 °C) |
| Switching Hysteresis | 3 ... 20% of Sr |
| Switching State Indicator | 3-point LED red |
| Typical Correction Factor | Construction Steel 100%, Stainless Steel 80%, Aluminum 50% |
| Electrical Data | |
| Switching Frequency | < 400 Hz |
| Voltage Supply Range +Vs | 6 ... 36 VDC |
| Max Current Consumption (no load) | 12 mA |
| Output Circuit | PNP normally open (NO) |
| Voltage Drop Vd | < 2 VDC |
| Output Current | < 100 mA |
| Short Circuit Proof | Yes |
| Reverse Polarity Proof | Yes |
| Mechanical Data | |
| Design | Cylindrical with Thread |
| Material (Active Area) | PBT |
| Housing Material | Chrome-Nickel Steel |
| Dimension | 8 mm |
| Housing Length | 46 mm |
| Connection Type | Connector M8 |
| Max Torque | 10 Nm (A: 7 Nm) |
| Ambient Conditions | |
| Operating Temperature | -25 ... +75 °C |
| Protection Class | IP 67 |
