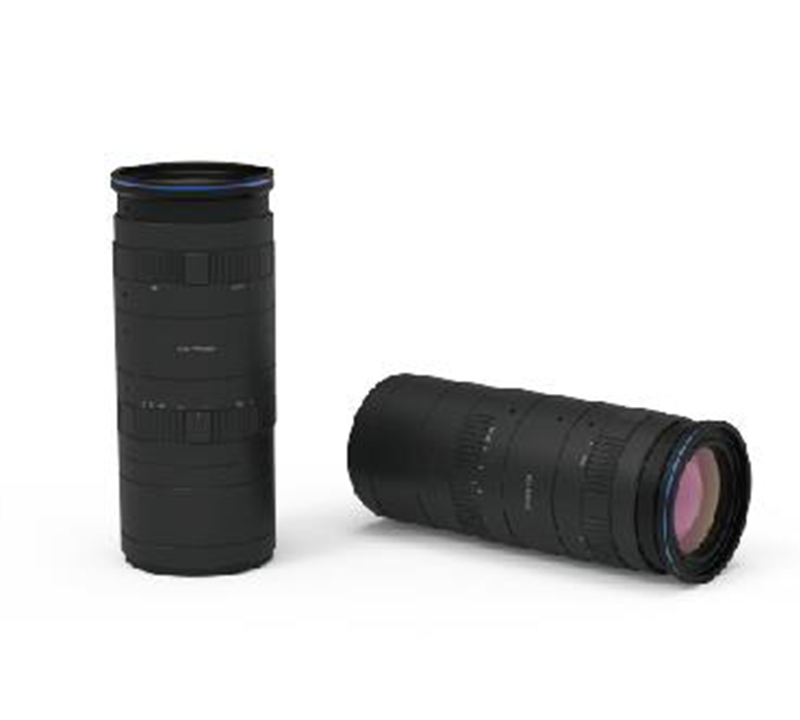

Industrial 151MP Fixed Focal Length Lenses OPT-M6050-151M
◆High resolution
For Ø67 mm large format sensor size and 3.76 μm pixel; resolution up to 151MP.
◆Floating focus design
Enabling good optical performance among wide working distance by floating focusing design.
◆Lowdistortion
Full FOV Max. optical distortion <0.7% in working distance.
◆Wide spectrum coating
400-1000 nm coating band; compatible with visible light and near-infrared band.
For Ø67 mm large format sensor size and 3.76 μm pixel; resolution up to 151MP.
◆Floating focus design
Enabling good optical performance among wide working distance by floating focusing design.
◆Lowdistortion
Full FOV Max. optical distortion <0.7% in working distance.
◆Wide spectrum coating
400-1000 nm coating band; compatible with visible light and near-infrared band.
Specifications
Size
Applications
| Model | OPT-M6050-151M |
|---|---|
| Focal Length(mm) | 60mm |
| Back Focal Length(mm) | 52.53 |
| Working Distance(mm) | 250-∞ |
| Aperture(F/#) | F5.0-F32 |
| Magnification（X） | 0.232X at WD250; 0.147X at WD400; 0.060X at WD1000 |
| Image Circle Ø(mm) | 67 |
| Distortion | ＜0.68% at WD250; ＜0.34% at WD400; ＜0.57% at WD1000 |
| Flange Focal Distance(mm) | 19.55 |
| Mount | M72 |
| Weight(kg) | 1.66 |
| Filter Thread | M72×0.75-6H |
| Image Resolution(μm) | 3.76 |
| Lens Type | Focus |
